Ominaisuudet
- Malli: -
- Merkki: -
- Toimituksen paino: 0,091kg
- Toimituksen korkeus: 8mm
- Toimituksen leveys: 79mm
- Toimituksen pituus: 157mm
- UPC: 050806008304
Tuotenro: 080097100
Valm.nro: BOLTBODYONLY

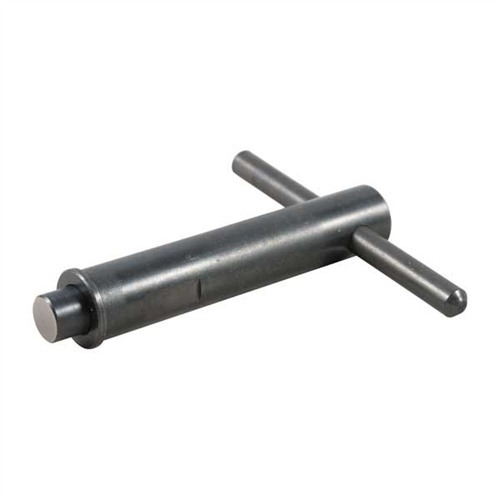

050806008304 Jousikuormitteinen työkalu antaa jatkuvaa, suoraa painetta pitääkseen bolt lugsit suorina vastaanottimen vasten lappaamisen aikana käyttäen 600-800 hiontapaperia, silikonikarbidia. Tarjoaa parempia tuloksia kuin pelkkä sormipaine. Vaihdettavat kierteiset sleeve -osat sopivat alla lueteltuihin suosittuihin toimintoihin.Jälkitilaus, toimitusaika n. 4-12 viikkoa USA:n varastosta.
BOLT LAPPING TOOLS -työkalu tarjoaa vaihdettavan muotoilun, joka varmistaa jatkuvan jousipaineen lukkopulttien tarkkaan sovittamiseen. Tämä työkalu on suunniteltu erityisesti lukkopulttien hiontaan 600-800 karkeuden silikonikarbidihiekalla.
Jousikuormitteinen työkalu antaa jatkuvaa, suoraa painetta, joka pitää lukkopultit suorassa vastaanottimessa hionnan aikana. Tämä menetelmä tuottaa parempia tuloksia verrattuna pelkkään sormipainamiseen. Vaihdettavat kierreholkit sopivat suosittuihin aseisiin, jotka on lueteltu alla.
M14/M1A Set -holkki sisältää suuren halkaisijan plungerin ja erityisen hiontakahvan, joita tarvitaan näille malleille. Mauser Large -holkki sopii suurirenkaisiin Mauser-toimintoihin, kun taas Mauser Small -holkki sopii pienirenkaisiin Mauser-toimintoihin. Savage Small -holkki sopii Savage-toimintoihin kaikissa kaliibereissa lukuun ottamatta Rem Ultra Mag (RUM), Rem SA Ultra Mag (RSUM) ja Win Short Mag (WSM). Savage Large -holkki sopii Savage-toimintoihin vain RUM, RSUM ja WSM kaliibereissa.
Yksi Gun Set sisältää lukkotyökalun rungon, plungerin ja oikean kokoisen holkin luetellulle mallille. M14/M1A One Gun Set sisältää lukkotyökalun rungon, suuren halkaisijan plungerin, oikean kokoisen holkin ja erityisen holkin sekä erityisen lukkopulttien hiontatyökalun, joka on ainutlaatuinen vain M14/M1A/M1 Garand -malleille. Kit sisältää kaikki työkalut, jotka ovat tarpeen kaikkien taulukossa lueteltujen mallien hiontaan.
* Erikoishinta, katso alla.
Very nice fit of parts. 31.8.2015
I bought this one-gun kit after trying to use the plunger body from the M14/M1/M1A kit. It did not fit a sleeve I had bought for the Large Ring Mauser. After receiving this kit with it's plunger body I then began trying all the parts one at a time.
Both plunger bodies are 0.5620" and the sleeves are 0.5625 except the M14, it was 0.563. There were little burrs on the plunger body of the M14 kit that made me think it would not fit the different sleeves. All fit well after a little lapping.
I plan on using the bolt lug lapping tool for several rifles I am building. After using the tool I believe I can use it to square the bolt face on a Mauser Large Ring VZ-24. After reaming the sleeve from existing 9/16" to a 5/8" I will press fit a drill bushing that is 5/8 x 3/8 and use the Mason Reamer Burr which has a 3/8" shaft. The Burr has been ground to 0.3740 to 0.3745. It has a buttery slip fit in the Drill Bushing.
Mauser threads are at a 55 deg pitch and not easy to find. Brownells sells the sleeve with the right threads for the '98 and the face truing Burrs. All you need is the drill bushing, the undersized drill, and the reamer to make the altered sleeve to be able to Lapp the lugs with the original unaltered sleeve, and true the face of your bolt with your altered sleeve. After, of course, you check that the receivers threads are true to the action. This can be checked with a mandrel which Brownells has too. This can be done for any rifle that Brownells has a sleeve for. Happy Gunsmithing, JL.
