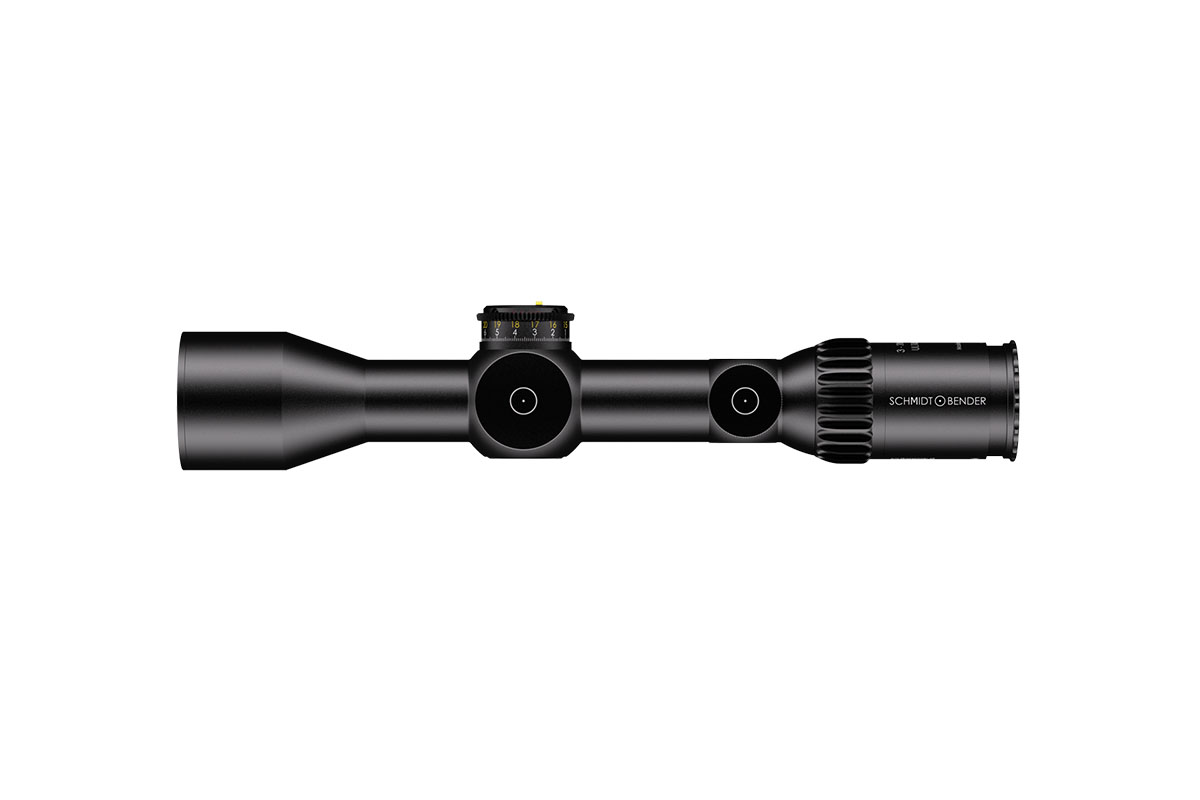

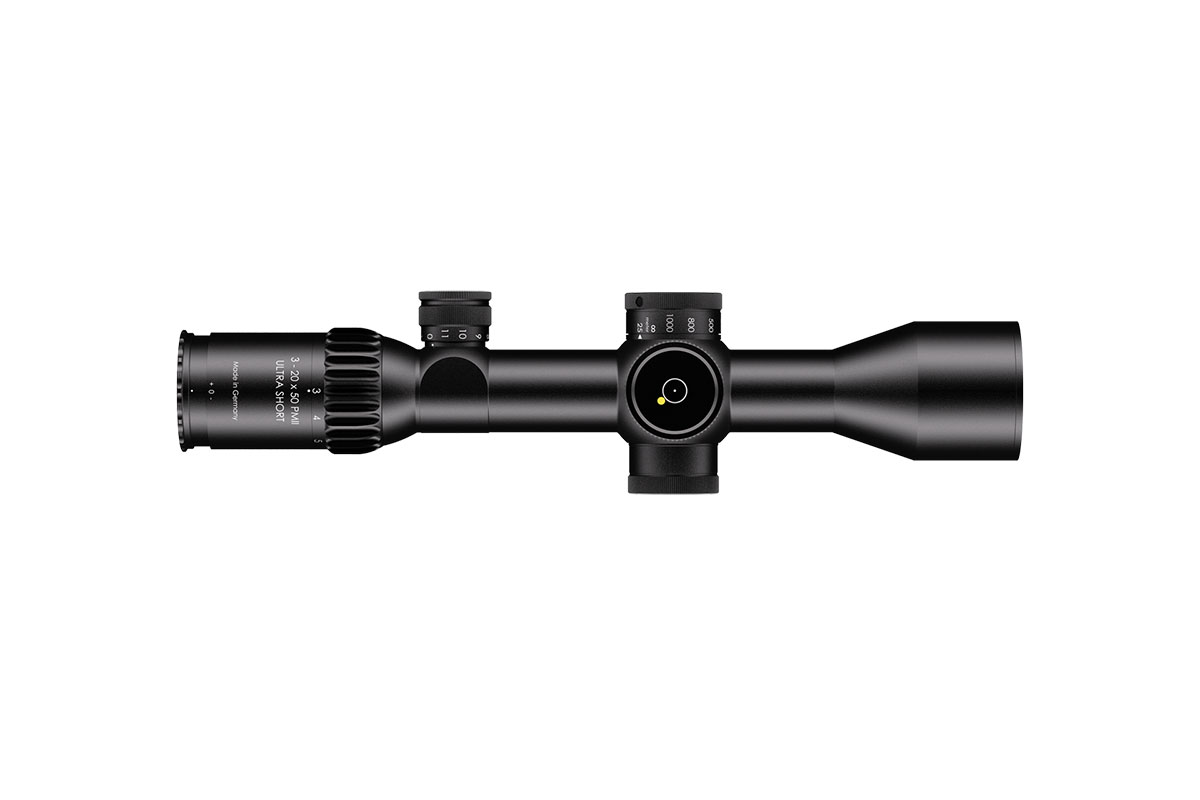

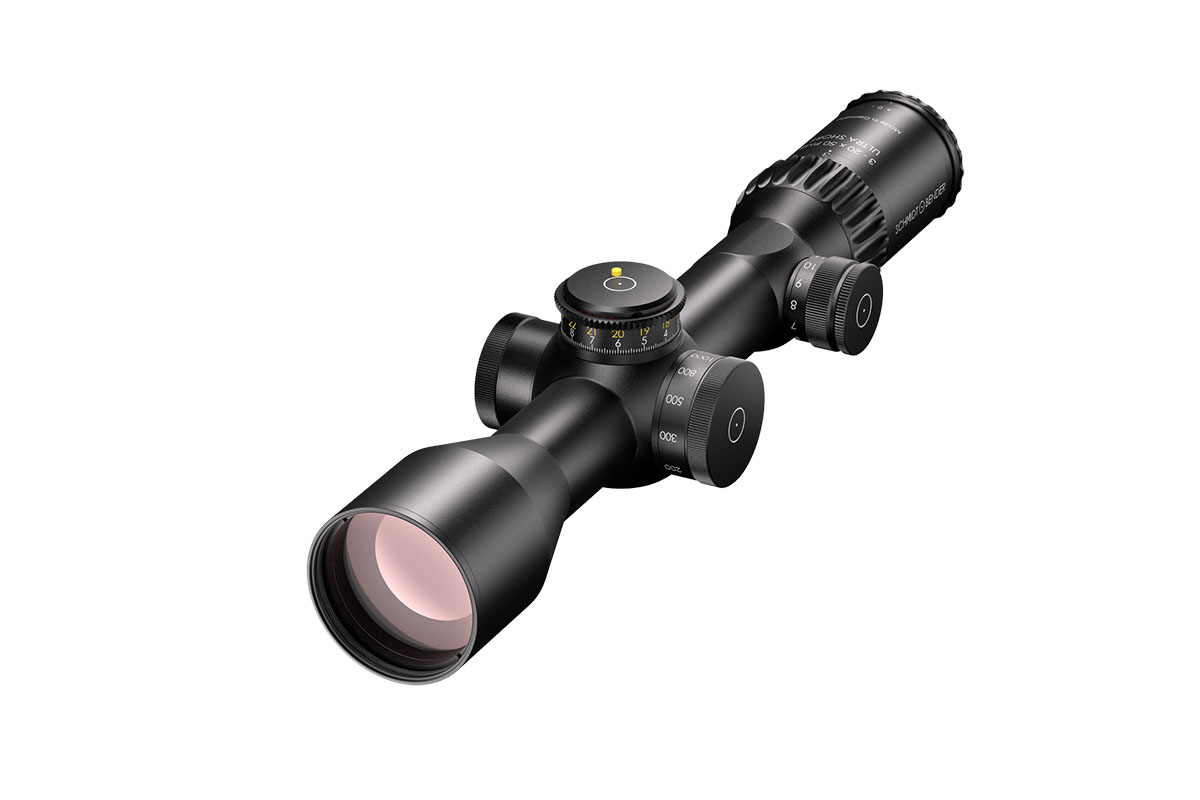

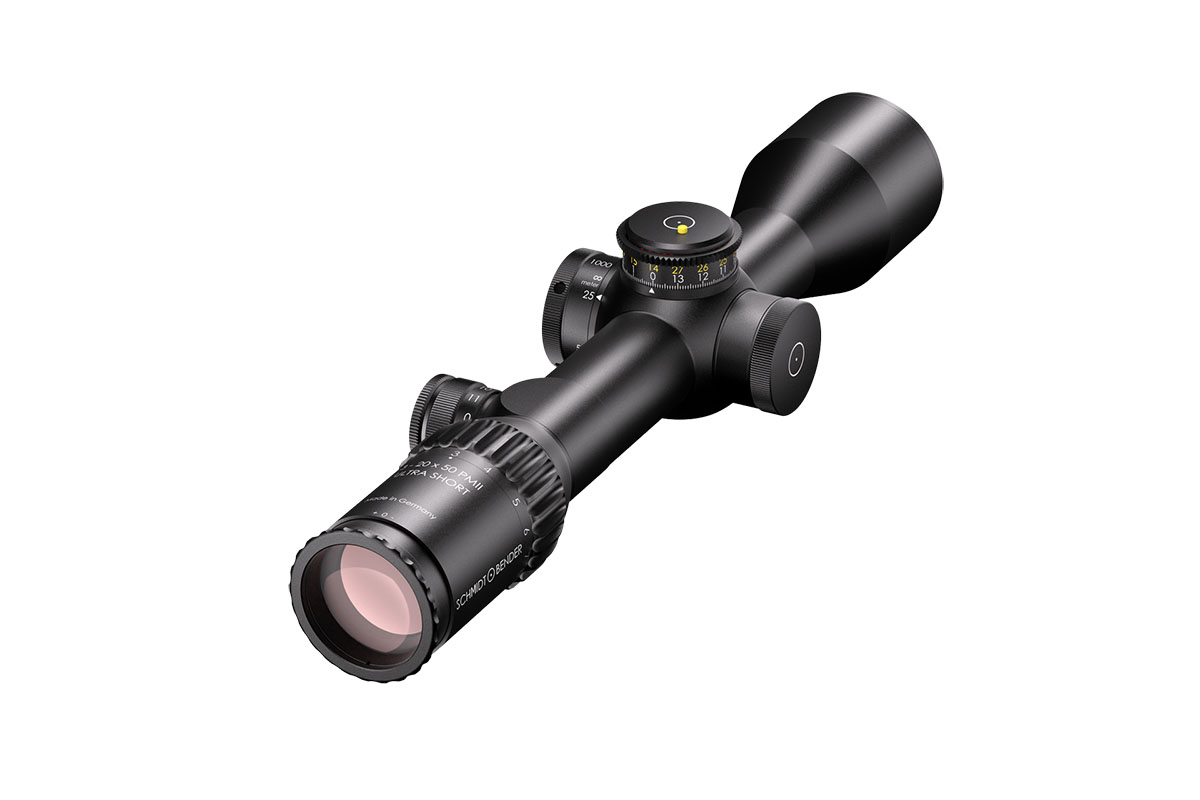

The 3‑20×50 PM II Ultra Short from Schmidt and Bender is a compact yet powerful riflescope engineered for high-performance engagements across medium to long distances. With its 3–20× magnification range and a 50 mm objective lens, it offers outstanding optical clarity and flexibility in a streamlined form factor.
Constructed around a robust 34 mm main tube, it maintains a length of approximately 340 mm and weighs around 900 g, striking an excellent balance between size and performance—ideal for mounting on compact platforms without compromising optics.
Its field of view spans roughly 13.0–2.1 m at 100 m, providing broad situational awareness at lower magnification and refined detail at the high end. The exit pupil ranges around 11.4–2.5 mm, and the eye relief is approximately 90 mm, supporting comfortable shooting in varied positions while maintaining strong light-gathering even as light fades.
Advanced features include first focal plane (FFP) illuminated reticle options, side parallax adjustment (from approx. 25 m to infinity), and a low-profile elevation turret optimized for tactical precision.
Key Specifications:
Magnification: 3–20×
Objective Lens Diameter: 50 mm
Main Tube Diameter: 34 mm
Field of View: approx. 13.0–2.1 m @100 m
Exit Pupil: approx. 11.4–2.5 mm
Eye Relief: approx. 90 mm
Length: approx. 340 mm
Weight: approx. 900 g
With precision optics, compact build, and rugged mechanical design, the 3‑20×50 PM II Ultra Short is built for serious shooters who demand premium performance in a versatile package.
Kompakti ja tehokas tarkkuuskiväärin kiikari
Schmidt ja Benderin 3–20×50 PM II Ultra Short on kompakti mutta tehokas tarkkuuskiväärin kiikari, joka on suunniteltu korkeatehoisiin suorituksiin keskikaukaisista pitkän matkan ampumisiin. Sen 3–20× suurennusalue ja 50 mm objektiivilinssi tarjoavat erinomaisen optisen kirkkauden ja joustavuuden virtaviivaisessa muodossa.
Ominaisuudet
- Rakenteeltaan: Kestävä 34 mm pääputki
- Pituus: Noin 340 mm
- Paino: Noin 900 g
- Näkökenttä: Noin 13.0–2.1 m @100 m
- Ulostuloaukko: Noin 11.4–2.5 mm
- Silmän etäisyys: Noin 90 mm
3–20×50 PM II Ultra Short on täydellinen tasapaino koon ja suorituskyvyn välillä, mikä tekee siitä ihanteellisen kompaktille alustoille ilman optiikan kompromisseja. Sen kenttä näkyvyys tarjoaa laajan tilannetietoisuuden alhaisemmalla suurennuksella ja hienosäätöä korkeammalla suurennuksella.
Edistykselliset ominaisuudet
- Ensimmäisen fokalitasan (FFP) valaistut ristikkäin vaihtoehdot
- Sivuparallaxin säätö (noin 25 m:stä äärettömyyteen)
- Matalaprofiilinen korkeusnuppi, joka on optimoitu taktiseen tarkkuuteen
3–20×50 PM II Ultra Short on rakennettu vakavalle ampujalle, joka vaatii huippuluokan suorituskykyä monipuolisessa paketissa.
