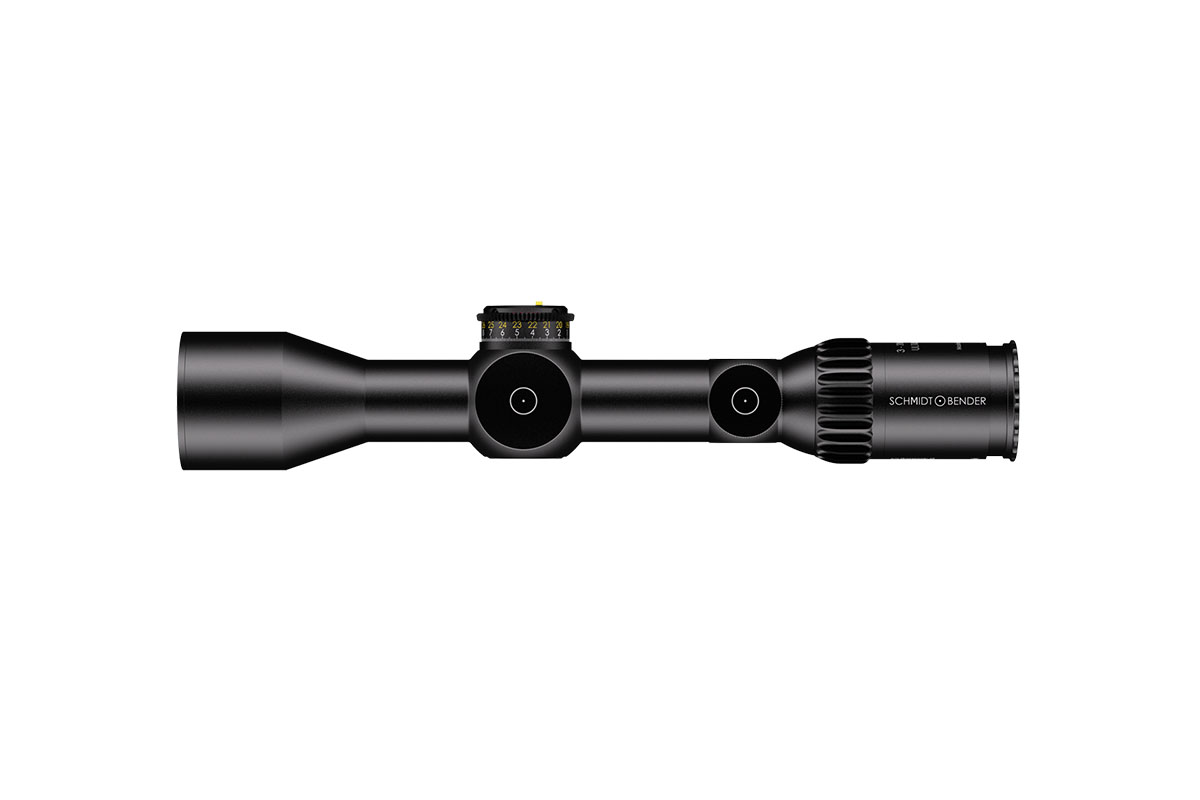

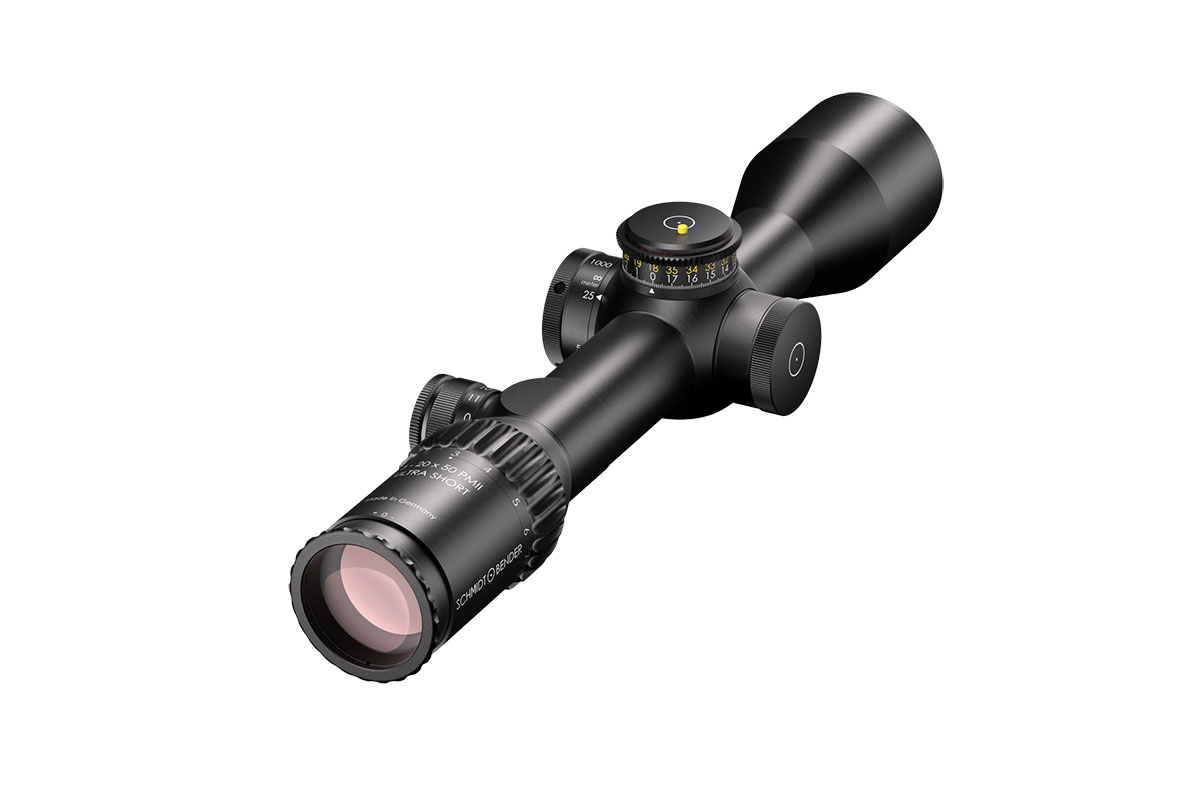

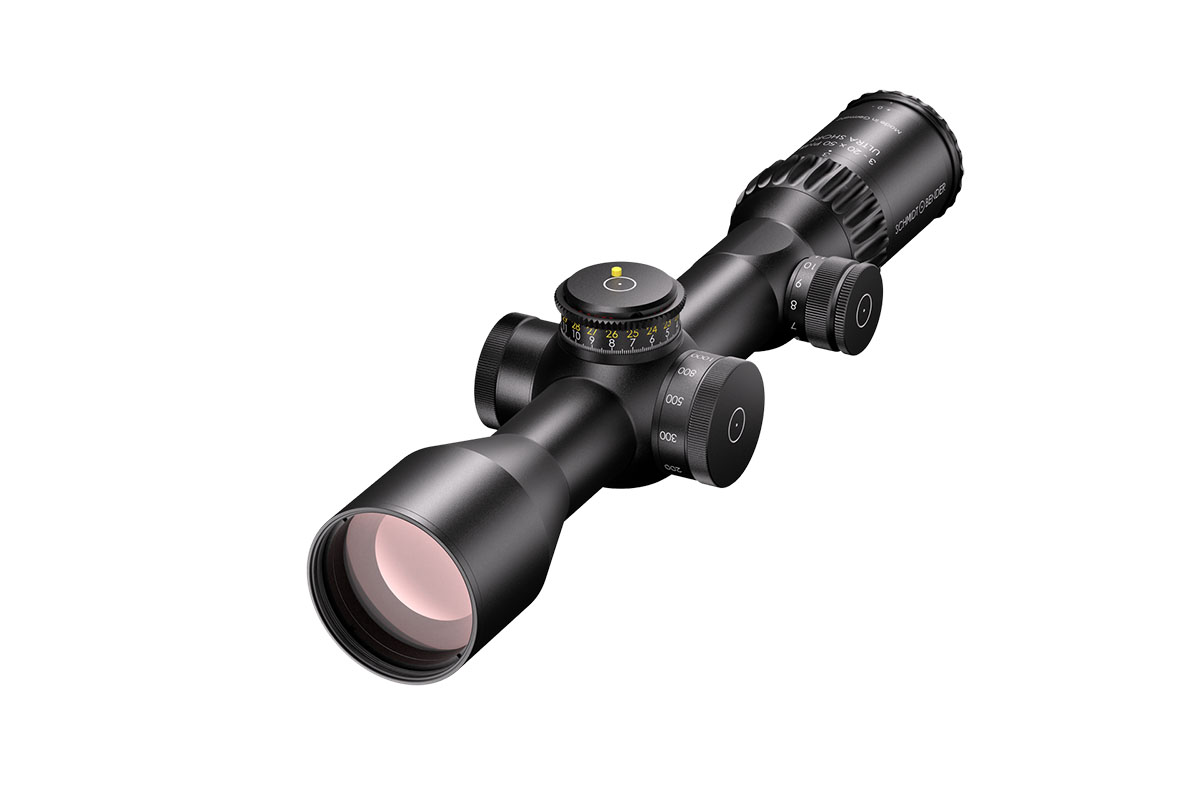

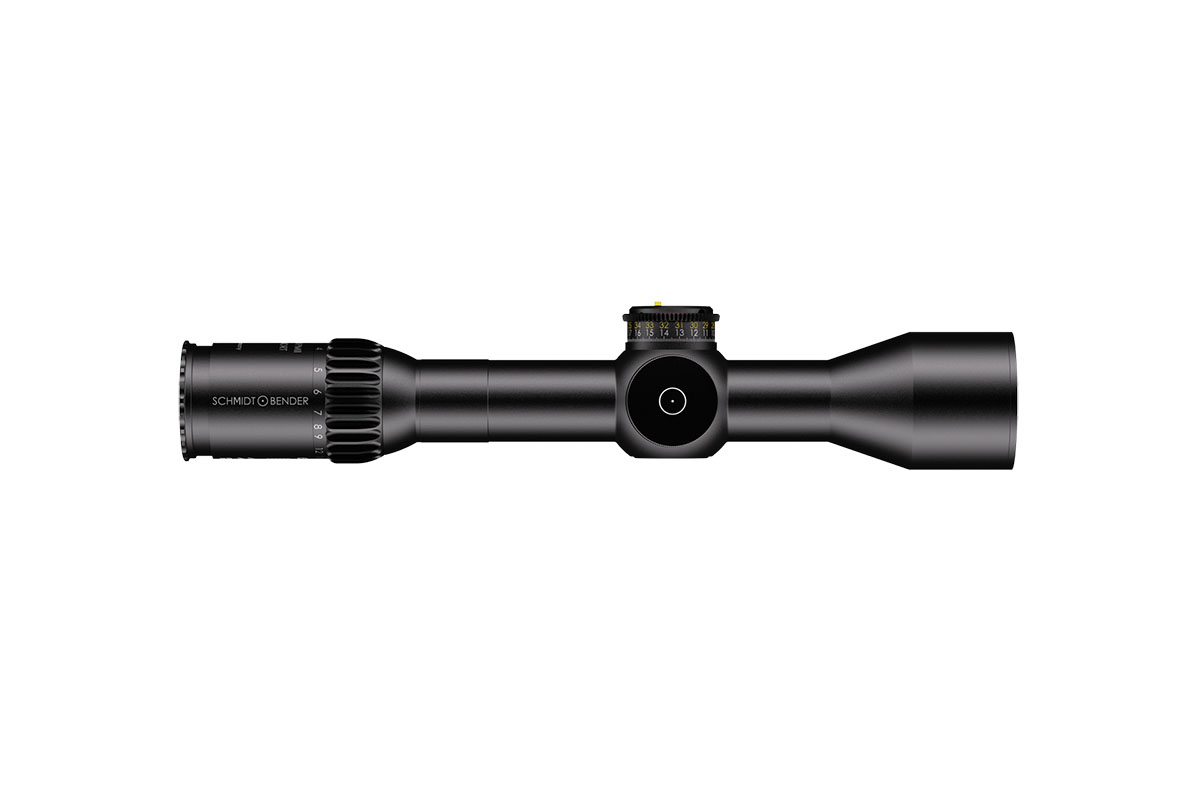

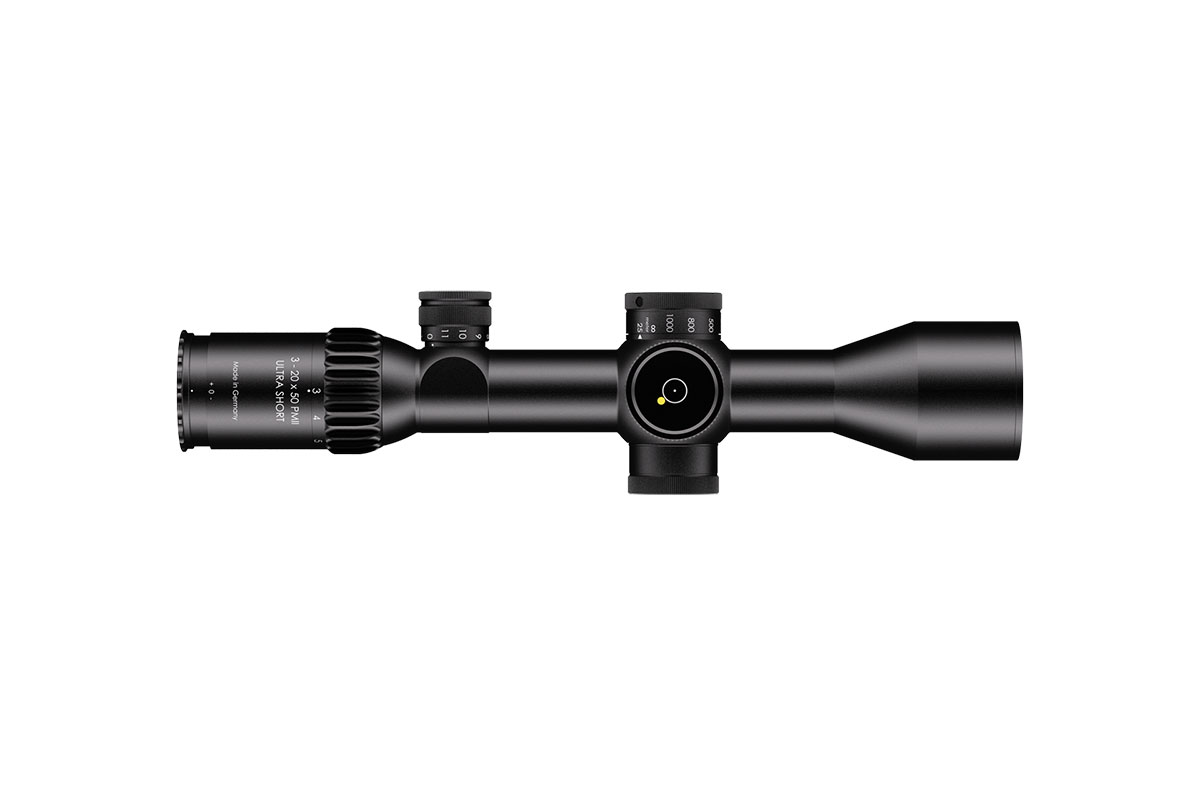

The 3‑20×50 PM II Ultra Short from Schmidt and Bender is a compact yet powerful riflescope engineered for high-performance engagements across medium to long distances. With its 3–20× magnification range and a 50 mm objective lens, it offers outstanding optical clarity and flexibility in a streamlined form factor.
Constructed around a robust 34 mm main tube, it maintains a length of approximately 340 mm and weighs around 900 g, striking an excellent balance between size and performance—ideal for mounting on compact platforms without compromising optics.
Its field of view spans roughly 13.0–2.1 m at 100 m, providing broad situational awareness at lower magnification and refined detail at the high end. The exit pupil ranges around 11.4–2.5 mm, and the eye relief is approximately 90 mm, supporting comfortable shooting in varied positions while maintaining strong light-gathering even as light fades.
Advanced features include first focal plane (FFP) illuminated reticle options, side parallax adjustment (from approx. 25 m to infinity), and a low-profile elevation turret optimized for tactical precision.
Key Specifications:
Magnification: 3–20×
Objective Lens Diameter: 50 mm
Main Tube Diameter: 34 mm
Field of View: approx. 13.0–2.1 m @100 m
Exit Pupil: approx. 11.4–2.5 mm
Eye Relief: approx. 90 mm
Length: approx. 340 mm
Weight: approx. 900 g
With precision optics, compact build, and rugged mechanical design, the 3‑20×50 PM II Ultra Short is built for serious shooters who demand premium performance in a versatile package.
Tehokas ja kompakti kiikarinratkaisu
Schmidt ja Benderin 3–20×50 PM II Ultra Short on kompakti mutta voimakas kiikaritähtäin, joka on suunniteltu korkean suorituskyvyn vaatimuksiin keskikokoisilla ja pitkillä etäisyyksillä. Sen 3–20× suurennosalue ja 50 mm objektiivilasi tarjoavat erinomaisen optisen kirkkauden ja joustavuuden virtaviivaisessa muodossa.
Ominaisuudet
- Rakennettu kestävästä 34 mm pääputkesta, pituus noin 340 mm ja paino noin 900 g, mikä tarjoaa erinomaisen tasapainon koon ja suorituskyvyn välillä.
- Näkyvyys noin 13.0–2.1 m 100 m:llä, mikä mahdollistaa laajan tilanteen tiedon alhaisessa suurennuksessa ja tarkat yksityiskohdat korkealla suurennoksella.
- Ulostulopupilli vaihtelee noin 11.4–2.5 mm, ja silmäetäisyys on noin 90 mm, mikä tukee mukavaa ampumista eri asennoissa.
- Edistykselliset ominaisuudet, kuten ensimmäisen suunnan (FFP) valaistut ristikkäin vaihtoehdot, sivuparallaksin säätö (noin 25 m:stä äärettömyyteen) ja matalan profiilin korkeussäätö, joka on optimoitu taktiseen tarkkuuteen.
Tekniset tiedot
- Suurennos: 3–20×
- Objektiivilinssin halkaisija: 50 mm
- Pääputken halkaisija: 34 mm
- Näkyvyys: noin 13.0–2.1 m @100 m
- Ulostulopupilli: noin 11.4–2.5 mm
- Silmäetäisyys: noin 90 mm
- Pituus: noin 340 mm
- Paino: noin 900 g
3–20×50 PM II Ultra Short on suunniteltu tosissaan ampuville, jotka vaativat huipputason suorituskykyä monipuolisessa paketissa.
