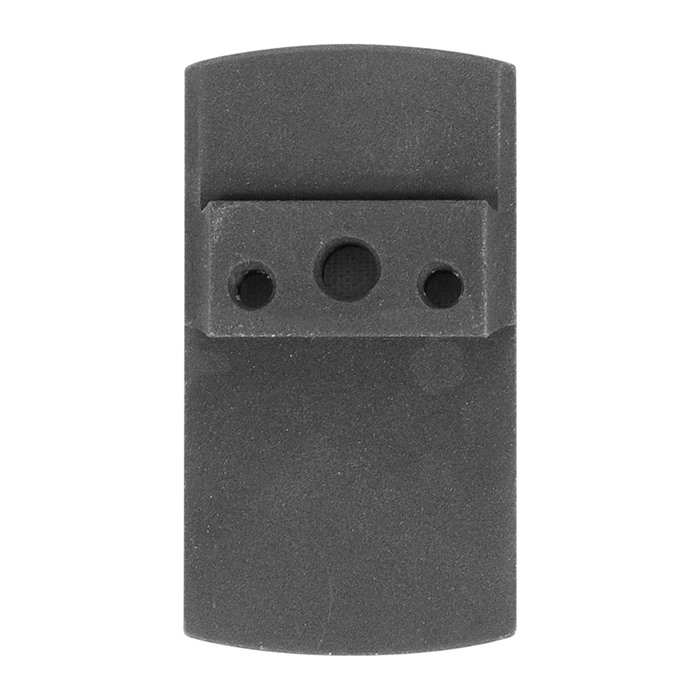

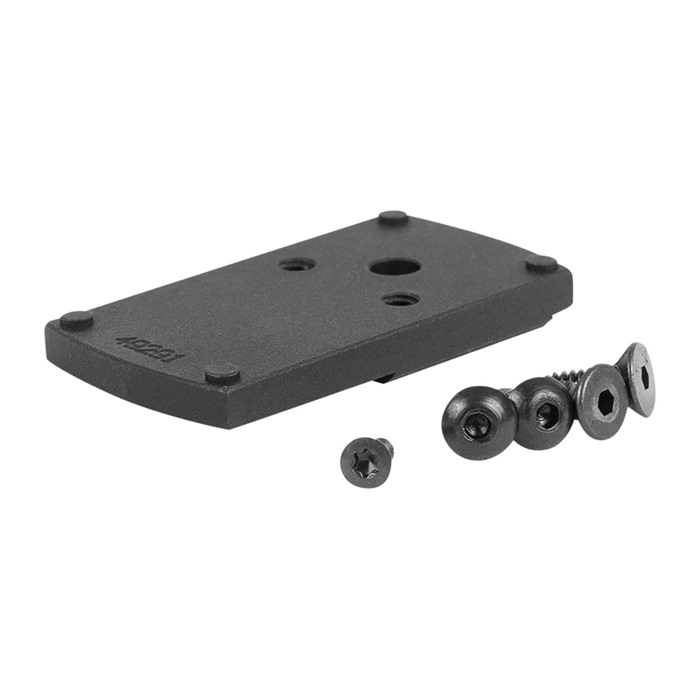

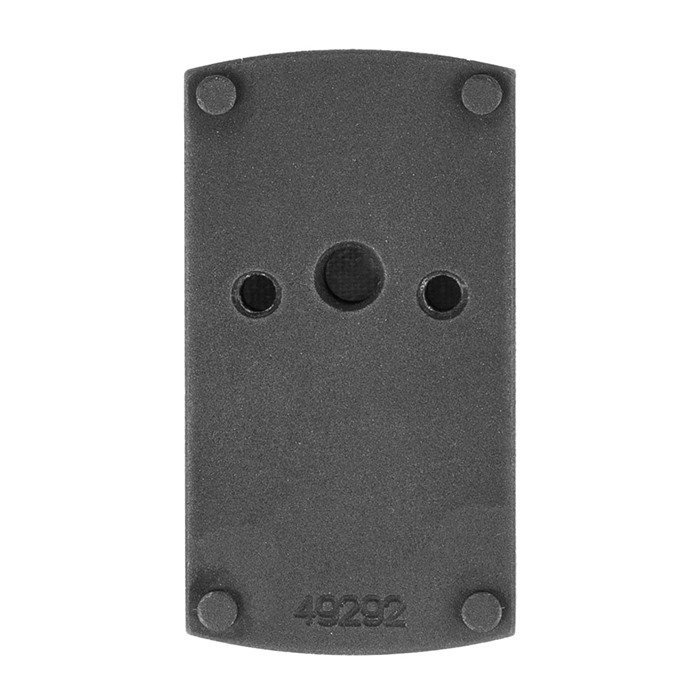

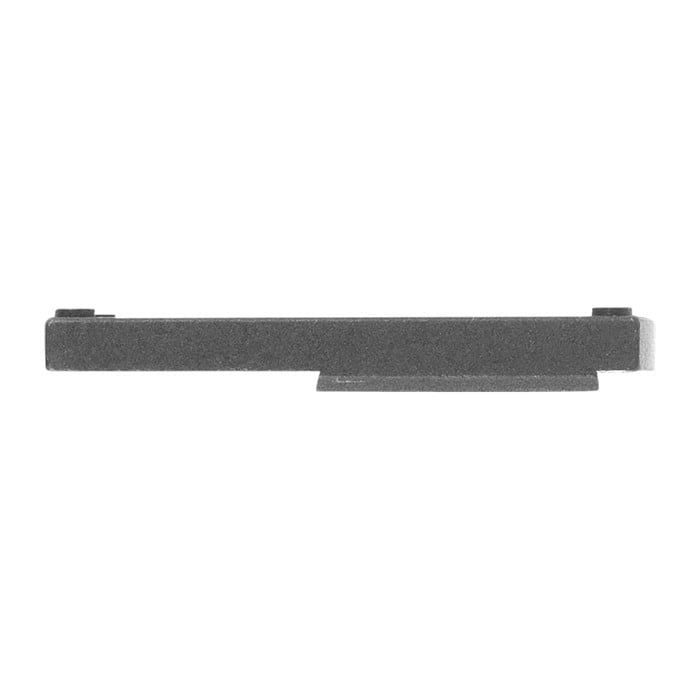

EGW red dot sights are meant to be installed from the left to the right (with the muzzle facing forward). The dovetail has a progressive taper to allow for easier install. Simply remove the rear sight on your gun and replace it with the mount in order to mount your Vortex Viper/Venom, Burris FastFire, or Docter red-dot sight. You can take the mount off and replace your rear sight at any time. Mounting hardware included. Installation Instructions Remove the rear sight* Install the EGW Sight Mount in the dovetail Tighten set screw (if applicable) Place the red dot sight on the EGW Sight Mount (placing a small piece of paper between the red dot sight and the sight mount will make for easier removal and will keep Loctite off of the red dot sight.) Apply blue Loctite to the provided mounting screws Torque mounting screws to 15in/lbs 2 Button Head Cap Screws - Provided for Vortex Viper and Venom Sights 2 Flat Head Cap Screws - Provided for Burris FastFire and Docter Sights The screws that are included with this mount require a 5/64'' allen wrench for installation. Modification of your firearm may nullify the manufacturer's warranty. This product should be installed and checked by a qualified gunsmith. No liability is expressed or implied for damage or injury which may result from improper installation or use of this product.
EGW Sight Mount Vortex Viper/Venom TAURUS G2/G3: Täydellinen valinta tarkkuudelle!
EGW:n punapisteet on suunniteltu asennettavaksi vasemmalta oikealle (mikäli piippu on eteenpäin). Kouru on progressiivisesti kapeneva, mikä helpottaa asennusta. Poista vain aseesi takasight ja vaihda se kiinnityksellä, jotta voit asentaa Vortex Viper/Venom, Burris FastFire tai Docter punapisteen.
Asennusohjeet
- Poista takasight*
- Asenna EGW Sight Mount kouruun
- Kiristä asetussiru (jos sovellettavissa)
- Aseta punapiste EGW Sight Mountiin (pienellä paperinpalan käyttämisellä punapisteen ja kiinnityksen välissä helpotat irrotusta ja estät Loctiten pääsemästä punapisteeseen).
- Käytä sinistä Loctitea mukana toimitettuihin kiinnityssiin
- Kiristä kiinnityssiin 15in/lbs
Toimitetut osat:
- 2 Kuppimutteria - Vortex Viper ja Venom -punapisteille
- 2 Litteää ruuvia - Burris FastFire ja Docter -punapisteille
Kiinnityksessä tarvitaan 5/64'' kuusiokoloavain. Huomioithan, että aseen muokkaaminen voi mitätöidä valmistajan takuun. Tuote tulisi asentaa ja tarkistaa pätevän asekorjaajan toimesta. Ei ole vastuuta vahingoista tai vammoista, jotka voivat johtua väärästä asennuksesta tai tuotteen käytöstä.
