Material: 7075 Aluminum Coating: Matte Black Hardcoat Overall Length: 1.780 Overall Width: 1.1" Mounting Hardware: (2) 6-32 Flat Head Screws, (1) 6-32 X 3/16 Set Screw Red Dot Fitment: Trijicon RMR This mount will fit: Smith & Wesson M&P Full Size Smith & Wesson M&P 2.0 Full Size Smith & Wesson M&P 22 Full Size Smith & Wesson M&P Compact* Smith & Wesson M&P 2.0 Compact* Smith & Wesson SD9VE Smith & Wesson SD40VE This mount does not fit: Smith & Wesson M&P Shield (Our mount is too wide to fit the Shield) Smith & Wesson M&P Shield EZ .380 Smith & Wesson SW9VE Smith & Wesson SW40VE Smith & Wesson M&P C.O.R.E Series *Will not fit the M&P .22 Compact. Smith and Wesson's rear sight dovetails are known to vary in dimensions. Our sights are made to the same tolerances. Some users may have trouble installing our plate on their slide due to the varying tolerances in your slides. Please keep this in mind when ordering.These mounts should be installed and checked by a qualified gunsmith. No liability is expressed or implied for damage or injury which may result from improper installation or use of this product. Simply remove the rear sight on your gun and replace it with our mount in order to mount your Trijicon RMR red dot sight. No alterations are required. You can take our mount off and replace your rear sight at any time. Mounting hardware included. Installation Instructions Remove the rear sight* Install the EGW Sight Mount in the dovetail Tighten set screw (if applicable) Place the red dot sight on the EGW Sight Mount (placing a small piece of paper between the red dot sight and the sight mount will make for easier removal and will keep Loctite off of the red dot sight.) Apply blue Loctite to the provided mounting screws Torque mounting screws to 15in/lbs *Rear sight pusher tool highly recommended*
EGW S&W M&P TRIJICON RMR SIGHT MOUNT – Täydellinen lisävaruste tarkkuusammuntaan!

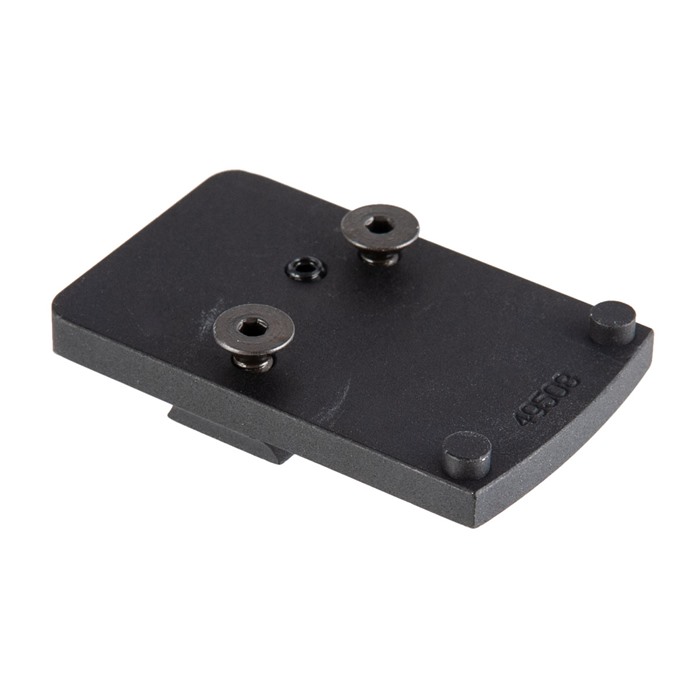

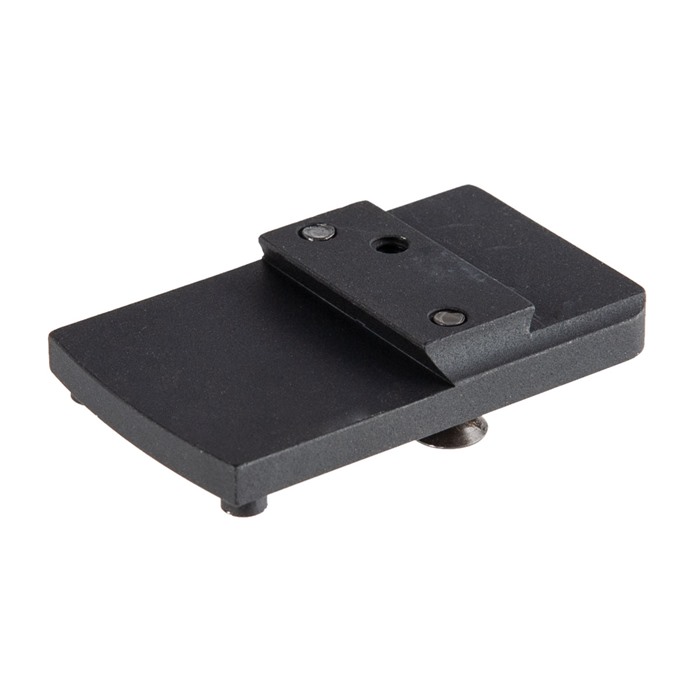

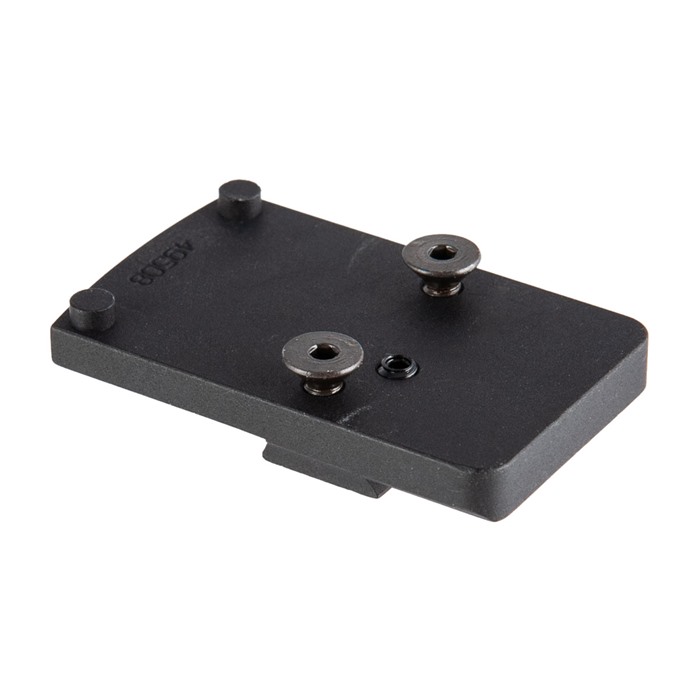

EGW:n S&W M&P TRIJICON RMR SIGHT MOUNT on suunniteltu tarjoamaan luotettava ja kestävä ratkaisu Trijicon RMR punapistetähtäimen kiinnittämiseen. Tämä mount on valmistettu korkealaatuisesta 7075 alumiinista ja sen mattamusta hardcoat-pinnoite takaa erinomaisen keston ja esteettisyyden.
Tuotetiedot:
- Materiaalit: 7075 Alumiini
- Pinnoite: Matte Black Hardcoat
- Kokonaispituus: 1.780"
- Kokonaisleveys: 1.1"
- Kiinnitystarvikkeet: (2) 6-32 Flat Head Screws, (1) 6-32 X 3/16 Set Screw
- Punapisteen yhteensopivuus: Trijicon RMR
Yhteensopivuus:
Tämä mount sopii seuraaviin aseisiin:
- Smith & Wesson M&P Full Size
- Smith & Wesson M&P 2.0 Full Size
- Smith & Wesson M&P 22 Full Size
- Smith & Wesson M&P Compact*
- Smith & Wesson M&P 2.0 Compact*
- Smith & Wesson SD9VE
- Smith & Wesson SD40VE
*Ei sovi M&P .22 Compact -malliin.
Huomioitavaa:
Smith & Wessonin takasilmät voivat vaihdella mitoiltaan. Meidän sightit on valmistettu samoilla toleransseilla, joten joillakin käyttäjillä saattaa olla ongelmia mountin asentamisessa liukusäätimelle. Huomioithan tämän tilauksen yhteydessä. Nämä mountit tulee asentaa ja tarkistaa pätevän asekorjaajan toimesta. Emme ota vastuuta vahingoista tai loukkaantumisista, jotka voivat johtua virheellisestä asennuksesta tai tuotteen käytöstä.
Asennusohjeet:
- Poista takasilmä*
- Asenna EGW Sight Mount dovetailiin
- Kiristä set screw (jos sovellettavissa)
- Aseta punapistetähtäin EGW Sight Mountiin (pieni paperinpalan käyttö punapistetähtäimen ja sight mountin välissä helpottaa poistamista ja pitää Loctiten pois punapistetähtäimestä)
- Levitä sinistä Loctitea mukana tuleville kiinnityssaranoille
- Kiristä kiinnityssaranoita 15 in/lbs
*Takasilmätyökalu on erittäin suositeltava.
