AMERICAN DEFENSE MANUFACTURING
RECON-S NO OFFSET SCOPE MOUNT

818503010729 100003654

Kuvaus
Arviot (11)

Rock-Solid Mounts With Quick-Detach System

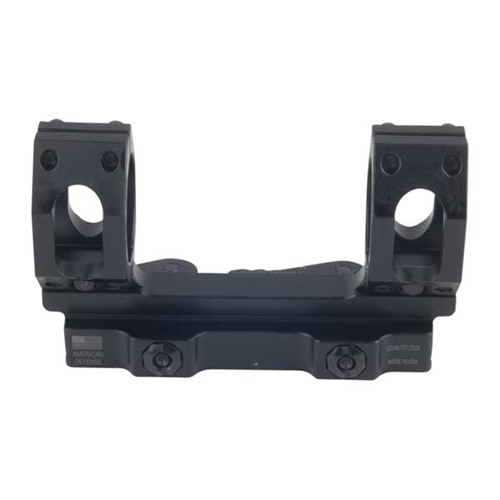

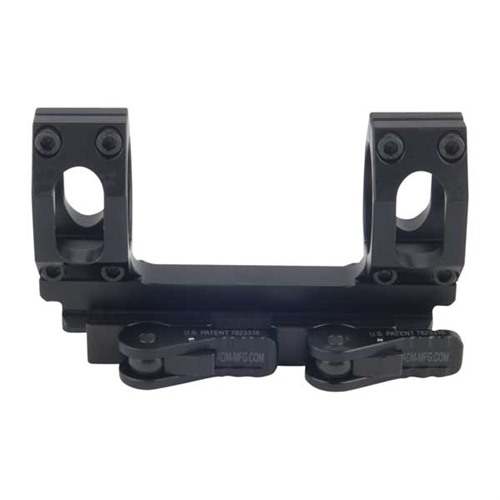

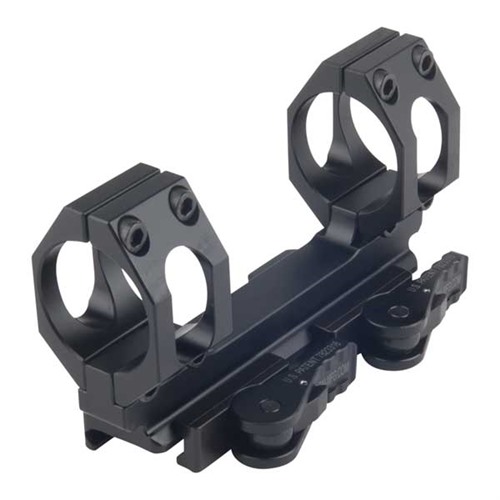

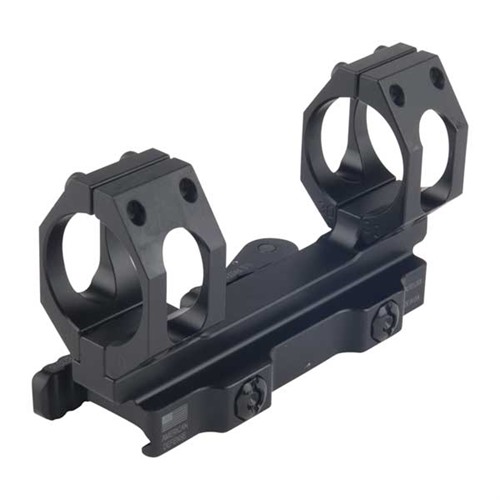

Quick-release lever-lock system clamps solidly to flattop rail and will not work loose even under heavy recoil—the more force acting on the lever, the tighter it locks. Depress the release tab to swing the lever open, and the mount easily lifts off the rifle. Adjustable with a flat head screwdriver or even a coin for an ultra-secure, no-slip fit on almost any Picatinny or Weaver-style rail, including over- or under-sized commercial rails. Lever may be configured to lock to the front or the rear to suit the operator’s preference. Large locking bar on the side of the mount engages the maximum amount of rail area, while the crossbolt and two integral locking lugs ensure rock-solid engagement of rail slots to prevent movement under recoil. Five heavy duty steel hex head screws (three on top, two on bottom) clamp the vertically split ring halves together. Cutouts in the ring sides and in the base reduce weight without sacrificing strength. Quick-Release Scope Mount one-piece base with dual-lever system provides the same solid mounting and fast removal and reattachment.

SPECS: 6061 T6 aluminum, hardcoat anodized, matte black. 4½” (11.4cm) long. Each ring covers 1” (2.5cm) of scope tube length. Height measured from top of rail to bottom of scope body (both models): .890”.

Lisää...

Asiakasarviot: AMERICAN DEFENSE MANUFACTURING 30MM 0 MOA SCOPE MOUNT, BLACK

Arvioiden lukumäärä: 11
Arvostelut brownells.com sivustolla: 11
Arvioiden keskiarvo: 5

awsome mount great quality for the price (19.5.2010)

Placed on my Stag model eight piston ar.Great mount no issues with holding zero easy to operate levers for removal and install.Just a great mount.

Just awesome (25.3.2011)

This mount is the well worth the investment. I found this mount to be of high quality fit and finish. It is rugged and easy to operate. I have had no issues with removal and holding zero once reinstalled.

more than impressed (18.6.2012)

mounted securely to my flat top bushy upper. Housing a redfiled revolution 2x7 and easily clears the magpul gen2 buis. craftsman ship is spot on and well built with solid QD. mounts solid with no movement. confident this will out last me in my day to day patrol duties. Made in USA is nice to!!!

Pay attention to screw length (25.9.2012)

Be attentive to the different screw lengths when mounting the scope. I didn't pay careful attention and had mounting issues until I realized my mistake.

Excellent Product! Awesome Company! (20.8.2013)

I recently ordered this from Brownells. Shipping was super fast and the product is built like a tank. The only problem I ran into was with the rail I was mounting it on. I have a TWS Dogleg Rail mounted on an AK and the QD bolts in this mount were a little too high.

I called American Defense and they let me know that they also make a slightly shorter bolt for weaver mounts, and that if I returned the mount to them, they would press in the new bolts and send back to me. In just a couple days I had it back and it fit like a glove! The customer service was top notch, and Jeremy really helped me figure it all out. This is why I only buy American made products now days. Will definitely be buying more ADM products in the future!

Rock Soild Mount (21.2.2015)

Rock solid simplicity. Easy to install. Very well made. I am so glad I didn't spend $100 more on other manufacturers similar mounts. ADM simply has the Best in Show in this category!

Awesome product! (11.3.2010)

I use this mount with a NightForce 2.5-10x on my LWRC M6A2 and to say the least it's made for battle. I've shot 1" groups repeatedly and I take this mount on and off, as well as use it on another AR I've built with no problems. I did break a roll pin in one of the QD leavers, however I had it replaced. Even with the broken roll pin, the leaver still locked down, and had no change in zero. Durable, dependable, and looks mean!

Light weight, but can take a pounding (19.3.2010)

I installed the 30MM Dual QR Straight up scope mount on a DPMS LR-308 build up and it worked great. Levers can be placed on either side to clear other accessories and it held zero with a large 30x 30mm scope. Removal and reinstallation returned the scope to zero. Light weigh was appreciated as the LR is not a light weight gun. Five hundered + rounds through the gun and no mount related mishaps.

I have one on a SCAR 17 (29.6.2012)

I have one on a 17 SCAR and am now considering on using one on a BMG.
This mount is VERY WELL MADE! I will try to use it on the BMG For the acid test.

Great Scope Mount! (2.11.2012)

Never had any of American Defense products before and this one makes me want more! I don't of any other quick release mounts that have adjustability of how hard it clamps the rail. This is a very nice feature, just don't get it too tight cause your be needing a screwdriver to pry it open! I hand standard high dollars scope rings before and this definitely holds it's zero like them, but also holds zero have removal and reinstallation. Great mount!

great mount (29.3.2015)

I now have 2 and am picking another one up soon. Right now i have 1 mounted on a 300 win mag and the other on an ar10 and rem 700.. The 300 mount doesn't come loose and system keeps zero. The other going back and forth maintains its zero. The key is to mount it the same way and same place every time. Next one is going on a ar spr and i can't wait!

Lue 11 arvostelua lisää brownells.com sivustolla

304.9 354.9 10 EUR

Tuotenro: 100003654
AMERICAN DEFENSE MANUFACTURING 30MM 0 MOA SCOPE MOUNT, BLACK
Valmistajan tuotenumero: ADRECONS30STD 818503010729 Pikalukitus vipu-lock system pihdit lujasti flattop rautateiden ja eivät toimi irti jopa raskas rekyyli-toimivat vipu voimakkaammin tiukempi se lukittuu. Paina vapautuskielekettä avautua vipu ja asentaa helposti nostaa pois kivääri. Säädettävissä litteä pää ruuvimeisseli tai jopa kolikon hintaan erittäin turvallisen, ei luista sopivat lähes kaikki Picatinny tai Weaver-tyylinen rautateitse, mukaan lukien yli - tai alamittaisten kaupallinen kiskot. Vipu olla configured jotta kiehkura edessä tai takana haluamallasi operaattorin etusijalle. Suuri lukitus Baari puolella mount harjoittaa sujuvuutta, enimmäismäärä crossbolt ja kaksi olennainen lukitus korvakkeet varmistettava järkähtämätöntä sitoutumista rautatieliikenteen lähtö liikettä alle rekyyli. Viisi raskaiden teräs hex ruuvit (kolme alkuun, kahdella pohjassa) puristin pystysuunnassa jaettu rengas puolikkaat yhteen. Automaattikatkaisijat rengas sivut ja pohja vähentää painoa uhraamatta vahvuus. Quick-Release kiikarijalat yksiosainen jalka kaksi vipu järjestelmä tarjoaa samat kiinteä asennus ja paastota erottaminen ja liimaaminen.

304.9 EUR 12 304,90 € *

Varastossa, toimitusaika 2-4 viikkoa.

Ominaisuudet: Elevation: 0 MOA Korkeus: .890'' Merkki: Universal Rifles Runkoputken halkaisija: 30mm Tyyppi: Quick Detach, Picatinny, Weaver Viimeistely: Matte Black
