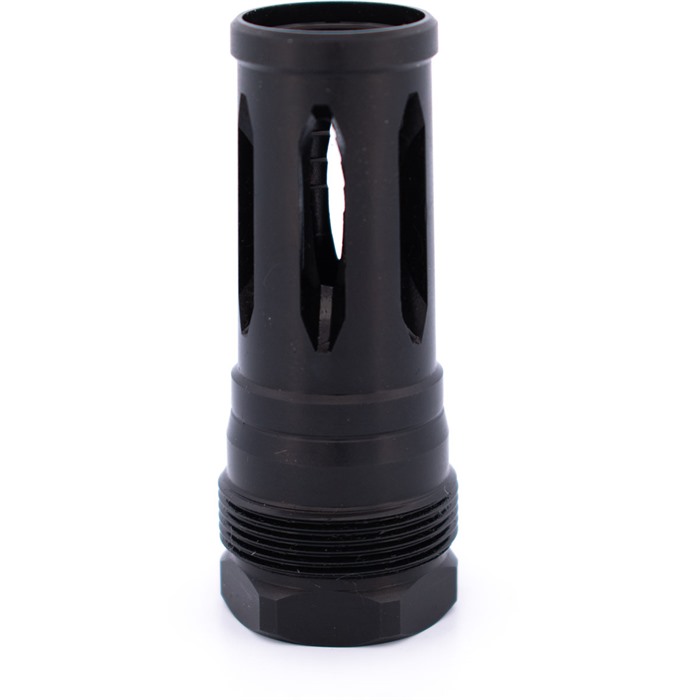

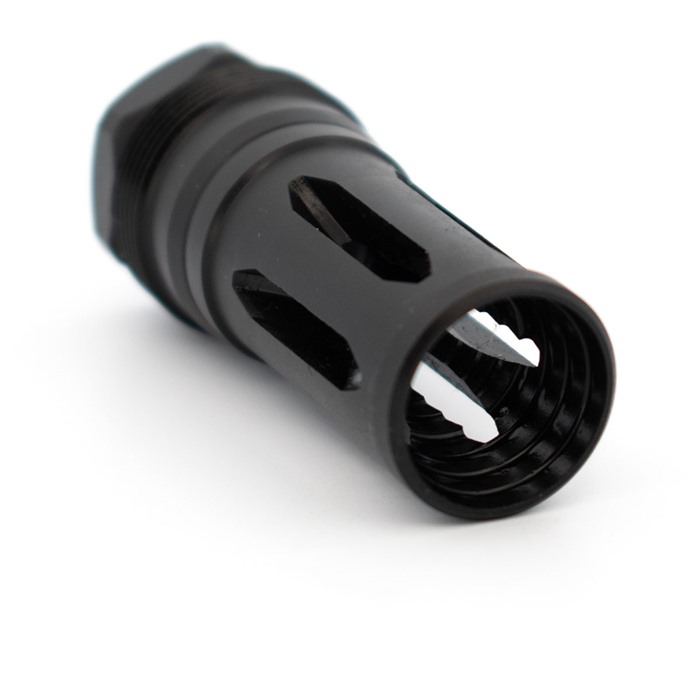

R2 FLASH HIDERS These fit Plan B type mounts. Always use an alignment rod to ensure that the entire system is set up correctly. Make sure all surfaces are cleaned and the muzzle device has been torqued and Rockset to the barrel. Use on a Q can voids your warranty, be warned. Torque the muzzle device to approximately 30 ft lbs. Make sure the muzzle device is square against the shoulder. When setting the silencer on the muzzle device, ensure that the threads and tapers are clean. Torque the suppressor to 10 ft lbs. Ensure alignment. Enjoy. The nitride finish does lead to a tighter seal, with that said, it is extremely important to torque and rockset your muzzle device to the barrel properly. FEATURES: 17-4 PH Atlas and Atlas XL compatible Plan B compatible Black Nitride finish (67 HRC Surface hardness) Shims not included, if you would like to specifically time this, shims will be required. Note: your barrel may require a shim if the manufacturer did not put a thread relief on it.
R2 FLASH HIDER – Tehokas ja luotettava valinta
R2 FLASH HIDERit ovat yhteensopivia Plan B -tyyppisten kiinnikkeiden kanssa. Varmista aina, että koko järjestelmä on asetettu oikein käyttämällä kohdistustankoa. Kaikkien pintojen tulee olla puhtaita, ja äänenvaimentimen tulee olla tiukasti kiinni ja Rocksetattu piippuun. Huomioi, että Q-kannun käyttö mitätöi takuusi. Kiristä äänenvaimenninta noin 30 ft lbs. Varmista, että äänenvaimennin on suora olkapäätä vasten. Kun asetat äänenvaimenninta äänenvaimennuslaitteeseen, varmista, että kierteet ja kartiot ovat puhtaat. Kiristä äänenvaimenninta 10 ft lbs. Varmista kohdistus. Nitraatti viimeistely takaa tiukemman tiivistyksen, joten on erittäin tärkeää kiristää ja Rocksettaa äänenvaimennin piippuun oikein.
Ominaisuudet:
- 17-4 PH
- Yhteensopiva Atlas- ja Atlas XL -mallien kanssa
- Yhteensopiva Plan B -mallien kanssa
- Musta nitraatti viimeistely (67 HRC pintakovuus)
- Shimmit eivät sisälly, jos haluat erityisesti ajoittaa tämän, shimmit ovat tarpeen.
- Huom: piippusi saattaa vaatia shimmin, jos valmistaja ei ole lisännyt kierteiden vapautusta.
