When Area 419 set out to make an ideal scope ring, the things Area 419 knew was needed to accomplish, and do to a degree you won’t find anywhere else on the market, is to produce a reliable, and true capture of the optic. This led us down a rabbit-hole, ultimately arriving on a process that gets you serialized, final-bore matched rings, with raw aluminum internals, for a grip on your optic that is more reliable and more true than anything else made. Like most rings, these begin as separate parts. Area 419 are making the bases and caps in batches. While many will make these parts, send them to anodize, and then just assemble, they produce around the extra steps. Once these parts return from anodize, they are fully assembled, placed back into specially produced rail fixtures, with the caps torqued to spec over specially made spacers (to give the rings space to torque down on the optic), and final-bored as sets in our world-class machining centers. Rings are then brought off the machine in sets, and placed into the laser to mark them as sets, with each set being uniquely identified as a match to its precision-bored counterparts. Is it overkill? Probably. But Area 419 think it’s the right way. So that’s what they are going to do. SPECS MATERIAL: 7075 Aerospace Grade Billet Aluminum (with Stainless Steel Hardware) COATING: Type 3 Hardcoat Anodize (internal bore is raw aluminum) TUBE DIAMETER: 30mm, 34mm, 35mm, 36mm MOUNT HEIGHT: Low (24mm), Medium (28mm), High (32mm)

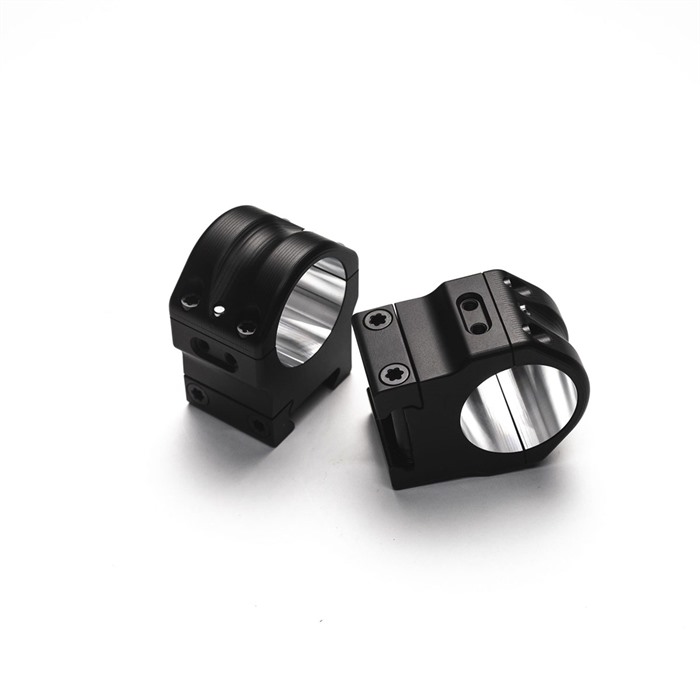

AREA 419:n MATCH SCOPE RINGS – Luotettavat ja tarkat kiikarin renkaat
Kun AREA 419 lähti luomaan ihanteellista kiikarin rengasta, he tiesivät, että tarvitaan luotettava ja tarkka optiikan kiinnitys. Tämä johti heidät prosessiin, joka tuottaa sarjatuotettuja, lopullisesti porattuja renkaita, joissa on raakaa alumiinia sisäosissa, tarjoten otteen optiikasta, joka on luotettavampi ja tarkempi kuin mikään muu markkinoilla.
Prosessi
Kuten useimmat renkaat, nämä alkavat erillisinä osina. AREA 419 valmistaa tukevat pohjat ja korkit erissä. Monet valmistajat tekevät nämä osat, lähettävät ne anodisoitavaksi ja kokoavat ne sitten, mutta AREA 419:n prosessi sisältää ylimääräisiä vaiheita. Kun osat palaavat anodisoinnista, ne kootaan täysin, asetetaan erityisiin kiskofikseihin, ja korkit kiristetään spesifikaatioiden mukaan erityisten välikappaleiden avulla (jotta renkailla on tilaa kiristyä optiikan ympärille), ja lopuksi ne porataan sarjoina huipputason koneistuskeskuksissa.
Erityispiirteet
- MATERIAALI: 7075 Aerospace Grade Billet Aluminum (ruostumattomasta teräksestä valmistetut kiinnikkeet)
- PINNOITE: Type 3 Hardcoat Anodize (sisäporat ovat raakaa alumiinia)
- PUTKEN HALKAISIJA: 30mm, 34mm, 35mm, 36mm
- KIINNITYSKORKEUS: Matala (24mm), Keskikorkea (28mm), Korkea (32mm)
Onko tämä liioittelua? Luultavasti. Mutta AREA 419 uskoo, että tämä on oikea tapa. Ja juuri näin he aikovat toimia.
