GG&G

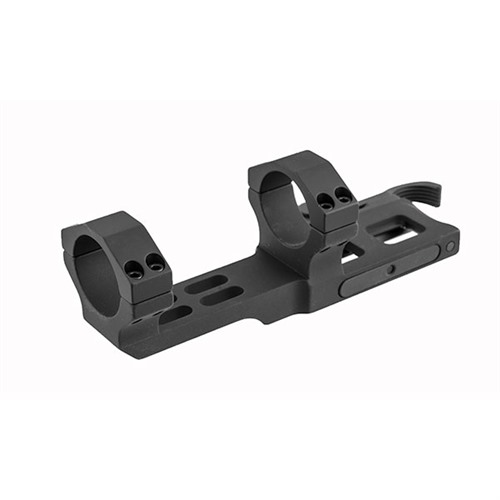

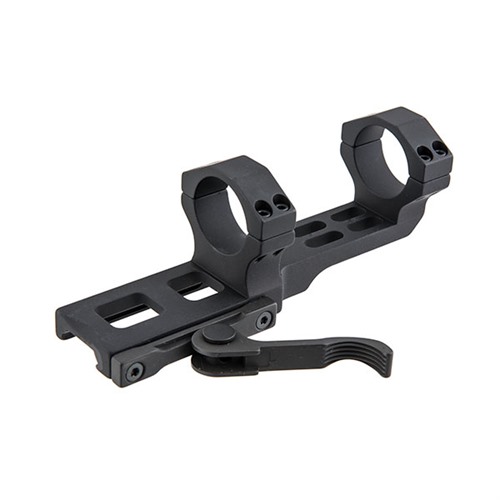

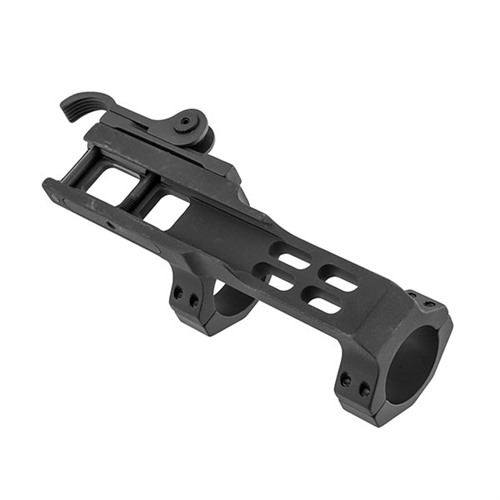

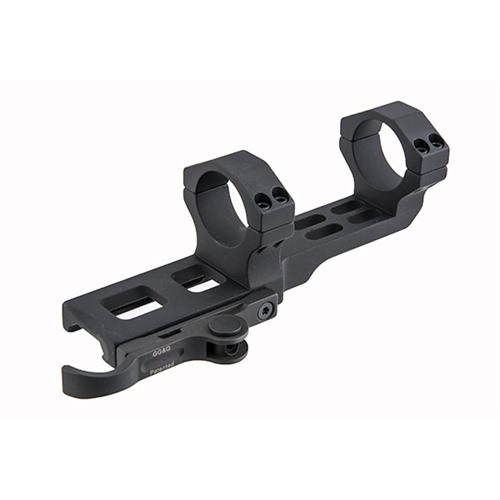

M1A SOCOM II QUICK DETACH SCOPE MOUNT

813157003745 336000052
The SOCOM II M1A Rifle is a compact, powerful close quarter combat battle rifle. However its "Cluster Rail" system makes it difficult to mount a conventional low powered scope. You have to install an additional receiver mounted scope base to the SOCOM II along with a set of scope rings that are tall enough so that the objective lens clears the top rail. If you want Quick Detach capability, you need to mount your scope on top of the receiver mounted scope base with some type of QD mount and ring combo. We think that's a PIA and has too many interface points that could negatively affect the zero retention of your scope. The New Products Team at GG&G has come up with an innovative solution---The SOCOM II Accucam Quick Detach Scope Mount With 30mm Integral Rings: The Accucam Quick Detach System provides quick and easy on-off transitions while maintaining 1/2 MOA accuracy. Accucam QD System is fully adjustable to fit worn or out of spec dovetails. The SOCOM II Accucam Quick Detach Scope Mount has dual recoil lugs that interface with the recoil slots of the top dovetail rail to provide secure recoil resistance. The scope mount has 30mm integral rings with four cap screws per ring. Each cap screw threads into stainless steel helicoils. The cantilever feature of the SOCOM II Scope Base overhangs 3" to allow for additional forward/rearward adjustment for scopes with different eye reliefs. The underside of the SOCOM II QD Scope Mount is relief cut for unimpeded cartridge ejection.

SPECS: 2.5" measurement inside ring face to inside ring face allows for forward/rearward adjustment of different eye releif scopes. 1.260" from top of the rail to center of 30mm integral rings, provides lower scope mounting while still clearing the objective lens of most scopes up to 50mm. Manufactured from 6061-T6 Billet Aluminum. Type III Hard Anodized. All Steel components are 4140 Ordnance Steel. length: 6". Weighs 7.7 oz.

349.9 349.9 1 EUR
Tuotenro: 336000052
GG&G M1A SOCOM II QD SCOPE MOUNT
Valmistajan tuotenumero: GGG1433 813157003745 SOCOM II M1A -kivääri on kompakti, tehokas lähitaisteluun suunniteltu taistelukivääri. Sen "Cluster Rail" -järjestelmä kuitenkin tekee perinteisen matalatehoisen kiikaritähtäimen asentamisen vaikeaksi. SOCOM II -malliin on asennettava lisäksi vastaanottimeen kiinnitettävä kiikaritähtäimen jalusta sekä tarpeeksi korkeat renkaat, jotta objektiivilinssi yltää yläkiskon yli. Jos haluat nopean irrotettavuuden, sinun on asennettava kiikaritähtäimesi vastaanottimeen kiinnitettävän jalustan päälle jonkinlaisella pikairrotettavalla kiinnitysjärjestelmällä ja renkailla. Mielestämme se on hankalaa ja siinä on liian monta liitäntäkohtaa, jotka voivat vaikuttaa haitallisesti kiikaritähtäimesi nollapisteen säilymiseen. GG&G:n Uusien Tuotteiden Tiimi on keksinyt innovatiivisen ratkaisun---SOCOM II Accucam pikairrotettava kiikaritähtäimen jalusta 30mm integraalirenkailla: Accucam pikairrotettava järjestelmä tarjoaa nopeat ja helpot päälle- ja pois- siirtymiset säilyttäen 1/2 MOA tarkkuuden. Accucam QD -järjestelmä on täysin säädettävissä kuluneisiin tai speksien ulkopuolelle jääviin kiskoihin sopivaksi. SOCOM II Accucam pikairrotettavassa kiikaritähtäimen jalustassa on kaksi rekyyliä vastaanottavaa nystyrää, jotka liittyvät yläkiskon rekyyliurien kanssa tarjoten vakaan rekyylin vastustuksen. Kiikaritähtäimen jalustassa on 30mm integraalirenkaat neljällä kansiokierretapilla renkaassa. Jokainen kansiokierretappi kierretään ruostumattomasta teräksestä valmistettuihin helicoileihin. SOCOM II -kiikaritähtäimen jalustan kantilever-ominaisuus yltää 3" eteenpäin mahdollistaen lisäsäätövaran eri silmäetäisyyksien kiikaritähtäimille. SOCOM II QD kiikaritähtäimen jalustan alapuoli on uritettu esteettömälle hylsynheitolle.
349.9 EUR 3 349,90 € *
Toimitusaika noin 2-4 viikkoa.
3 kpl. USA:n varastossa
Ominaisuudet: Malli: M1A Merkki: Springfield Tyyppi: Quick Detach Viimeistely: Black

Ominaisuudet

Malli: M1A Tyyli: Quick Detach Valmistaja: Springfield Viimeistely: Black Toimituksen paino: 0,113kg Toimituksen korkeus: 71mm Toimituksen leveys: 127mm Toimituksen pituus: 191mm

Tuotekuvaus

Made in USA



The SOCOM II M1A Rifle is a compact, powerful close quarter combat battle rifle. However its "Cluster Rail" system makes it difficult to mount a conventional low powered scope. You have to install an additional receiver mounted scope base to the SOCOM II along with a set of scope rings that are tall enough so that the objective lens clears the top rail. If you want Quick Detach capability, you need to mount your scope on top of the receiver mounted scope base with some type of QD mount and ring combo. We think that's a PIA and has too many interface points that could negatively affect the zero retention of your scope. The New Products Team at GG&G has come up with an innovative solution---The SOCOM II Accucam Quick Detach Scope Mount With 30mm Integral Rings: The Accucam Quick Detach System provides quick and easy on-off transitions while maintaining 1/2 MOA accuracy. Accucam QD System is fully adjustable to fit worn or out of spec dovetails. The SOCOM II Accucam Quick Detach Scope Mount has dual recoil lugs that interface with the recoil slots of the top dovetail rail to provide secure recoil resistance. The scope mount has 30mm integral rings with four cap screws per ring. Each cap screw threads into stainless steel helicoils. The cantilever feature of the SOCOM II Scope Base overhangs 3" to allow for additional forward/rearward adjustment for scopes with different eye reliefs. The underside of the SOCOM II QD Scope Mount is relief cut for unimpeded cartridge ejection.

SPECS: 2.5" measurement inside ring face to inside ring face allows for forward/rearward adjustment of different eye releif scopes. 1.260" from top of the rail to center of 30mm integral rings, provides lower scope mounting while still clearing the objective lens of most scopes up to 50mm. Manufactured from 6061-T6 Billet Aluminum. Type III Hard Anodized. All Steel components are 4140 Ordnance Steel. length: 6". Weighs 7.7 oz.
