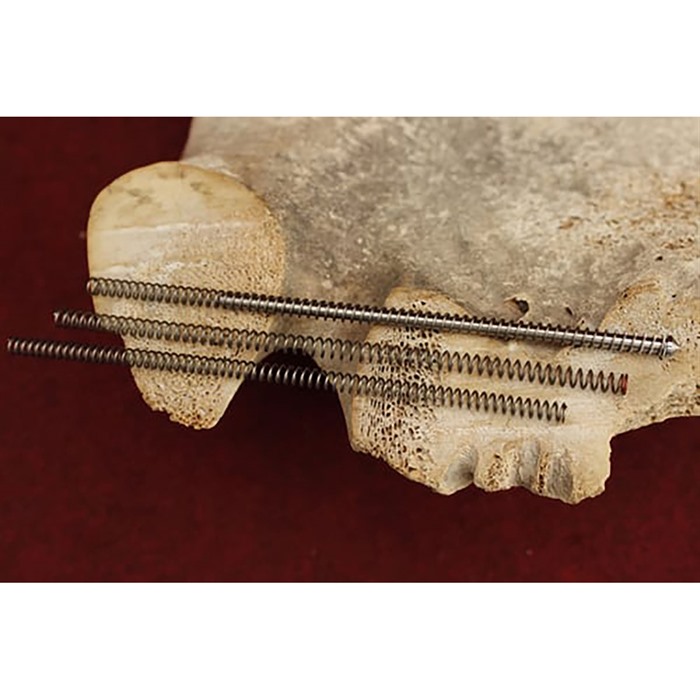

Upgrade the bolt handle assembly in the 10/22® Slick guide rod for easy racking Interchangeable tuning springs:(White=standard, Red=10% increase, Green=10% decrease) This great upgrade kit for your 10/22® will provide you with a comfortable bolt handle to grasp, a "super slick" guide rod, and the ability to tune the recoil of your rifle with our interchangeable springs. All bolt handle lengths are 1 3/4", which is 1/4" longer than the factory bolt handle assembly kit giving greater clearance for the shooter's knuckles while racking the bolt. The three tuning springs come in varying tensions for the ultimate in tuning capability. Though by and large the standard tension spring will serve the shooter throughout the different ammunition velocities. If, due to tolerance stacking or preferred ammunition the cycling of the action is out of sync then the shooter has the capability to change the spring without using the more primitive method of cutting coils to tune a spring. Handle Weights: black 762 (modified z shape flute)= .3 oz Precision ground guide rod is made from hardened tool steel and held to 2/10,000" tolerance throughout its entire length. The rod is nitride treated which gives its surface a 70C rockwell (harder than a file) surface hardness. Guaranteed the smoothest and slickest guide rod in the industry. Packaging Includes: bolt handle guide rod 3 tuning springs Installation instructions: After removing the stock from the barreled action, remove the trigger and bolt stop. This will allow the needed clearance for the bolt to be removed along with the bolt handle assembly. After choosing your proper spring tension slip the bolt handle assembly in from the ejection port, placing the cone end of the rod into the containment hole in the receiver. Then fully compress the bolt handle assembly while placing the bolt on it. After the mating of the bolt handle and bolt, let off the containment allowing the bolt to go forward. Install the bolt stop pin, trigger and stock. The video below offers some of the finer installation points.
Päivitä Ruger 10/22:n toimintaa tehokkaammaksi
Esittelyssä KIDD INNOVATIVE DESIGNin GUIDE ROD & SPRING KIT Ruger 10/22:lle. Tämä erinomainen päivityspaketti parantaa kiväärisi toimivuutta ja mukavuutta.
Tuotteen kuvaus
Päivitys 10/22®:n lukon kahva-asentoon. Tämä slick guide rod mahdollistaa helpon käyttöönottamisen.
- Vaihdettavat viritysprings: (Valkoinen = normaali, Punainen = 10 % lisäys, Vihreä = 10 % väheneminen)
- Kaikki lukon kahvan pituudet ovat 1 3/4", mikä on 1/4" pidempi kuin tehdaslukon kahva, antaen enemmän tilaa ampujan nyrkeille.
- Kolme virityspainetta tarjoavat lopullisen virityskyvyn.
Normaalijännitteinen jousi palvelee ampujaa eri patruunoiden nopeuksilla. Jos toimintanopeus ei ole synkronissa, ampuja voi vaihtaa jousen ilman, että tarvitsee käyttää primitiivisempää menetelmää jousen virittämiseen.
Ominaisuudet
- Kahvan painot: musta 762 (muokattu z-muotoilu) = 0.3 oz
- Tarkkuusjyrsitty ohjaustanko on valmistettu kovetetusta työkaluteräksestä ja sen toleranssi on 2/10,000".
- Tanko on nitraatti käsitelty, mikä antaa sille 70C Rockwell-kovuusluvun (kovempi kuin viila).
- Vakuutamme, että tämä on alan silein ja liukkainta ohjaustankoa.

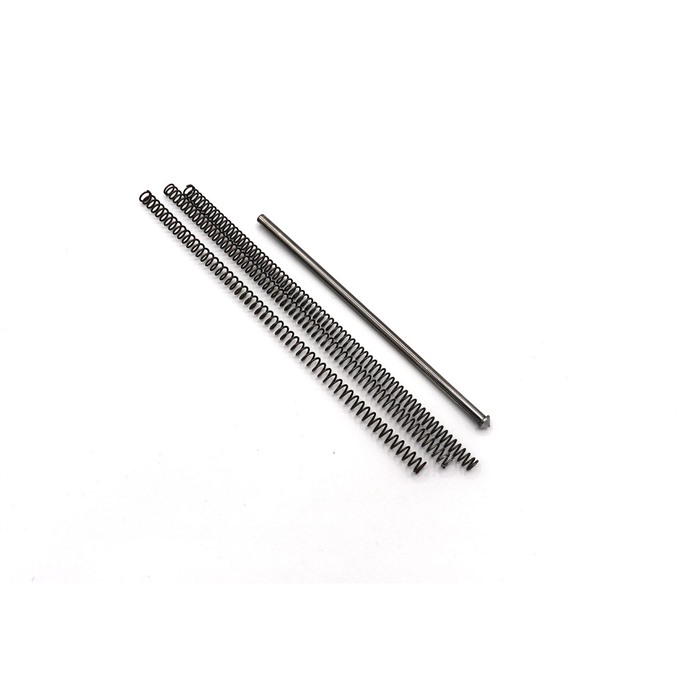

Pakkaus sisältää
- Lukon kahva
- Ohjaustanko
- 3 viritysjousia
Asennusohjeet
Poista ensin perä, sitten liipaisin ja lukon pysäytys. Tämä antaa tarvittavan tilan lukon poistamiseksi yhdessä lukon kahva-asennon kanssa. Valitse haluamasi jousijännitys ja liu'uta lukon kahva-asennus poistoportista, asettaen tangon kartiomaisen pää vastaanottimen sisältöaukkoon. Purista lukon kahva-asennus täysin, samalla kun asetat lukon sen päälle. Kun lukon kahva ja lukko ovat kohdakkain, päästä irti sisällöstä ja anna lukon edetä eteenpäin. Asenna lukon pysäytyspinni, liipaisin ja perä. Alla oleva video tarjoaa tarkempia asennusvinkkejä.
