OPF-G43x/48, RMRcc (Optics Platform, Forward Controls, G43x/48, RMRcc) is the latest member of the OPF line. G43x and 48 MOS slides are designed for direct mounting of the Shield RMSc sight. Trijicon's RMRcc is longer, and requires an adapter plate which also necessarily raises the mounting surface in order to mount an RMRcc. RMRcc has its own footprint. Gone are the two lug holes in front, these are replaced by two larger diameter threaded posts (bosses) through which the sight to mount/plate screws are installed. The sight to mount/plate screws are also significantly strengthened, though with the OPF-G, RMRcc design that holds the sight immobile on the plate, the larger diameter and stronger screws aren't as important, we always welcome screws that are less likely to strip. With the OPF-G43x/48, RMRcc, we didn't merely raise the mounting surface to provide a platform for the RMRcc. As RMRcc is longer than the G43X/48 MOS cut, the sight overhangs on the slide. When installed, the bottom of RMRcc (with Trijicon provided sealing plate installed) is almost flush with the top of the slide so the sight is as low as possible. We positioned the RMRcc towards the center of the plate as much as feasible, this is done to reduce the amount of unsupported overhang on the RMRcc's sealing plate in front. RMRcc has a rubber gasket around its battery compartment to keep water and moisture at bay, which pushes the sealing plate downward. This isn't an issue if the plate is of the same length as the RMRcc, but with an overhang, it creates a slight gap between the gasket and the sealing plate. OPF-G43x/48, RMRcc's design eliminates the gap/opening between the sight and sealer plate, to the point of emulating a plate that's as long as the sight itself. To wit, if the plate is as long as the RMRcc, it will make the installed height of RMRcc even taller, which is the very reason we chose to let the sight overhang. Torque value: Plate to slide: 12 to15 in·lbs. Sight to plate: 18 in·lbs.. Weight: 0.75oz Material: 1018 steel, black nitrided
Uusi TRIJICON RMRCC ADAPTER PLATE GLOCK 43/48: Innovatiivinen ratkaisu optiikoille
OPF-G43x/48, RMRcc (Optics Platform, Forward Controls, G43x/48, RMRcc) on uusin jäsen OPF-sarjassa. G43x- ja 48 MOS -liukujen suunnittelu mahdollistaa Shield RMSc -näkölaiteen suoran kiinnittämisen. Trijiconin RMRcc on pidempi ja vaatii adapterilevyn, joka nostaa kiinnityspintaa RMRcc:n asentamiseksi.
Ominaisuudet

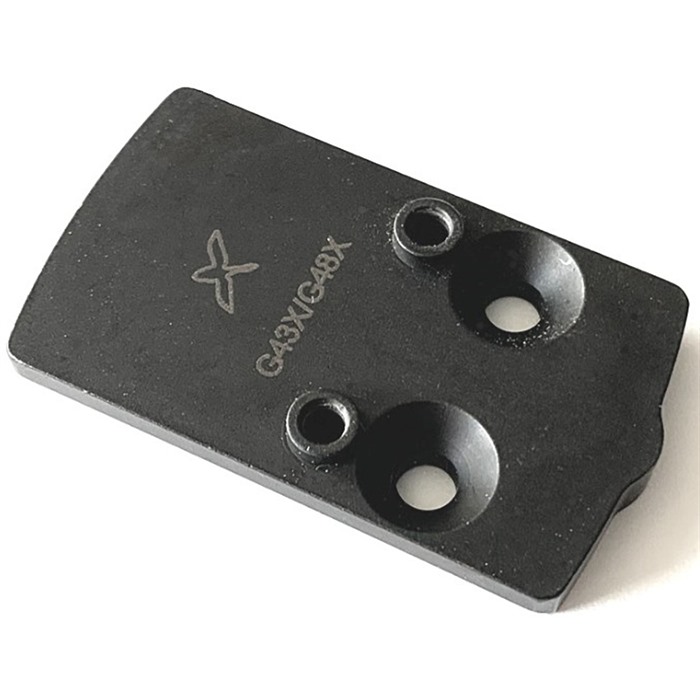

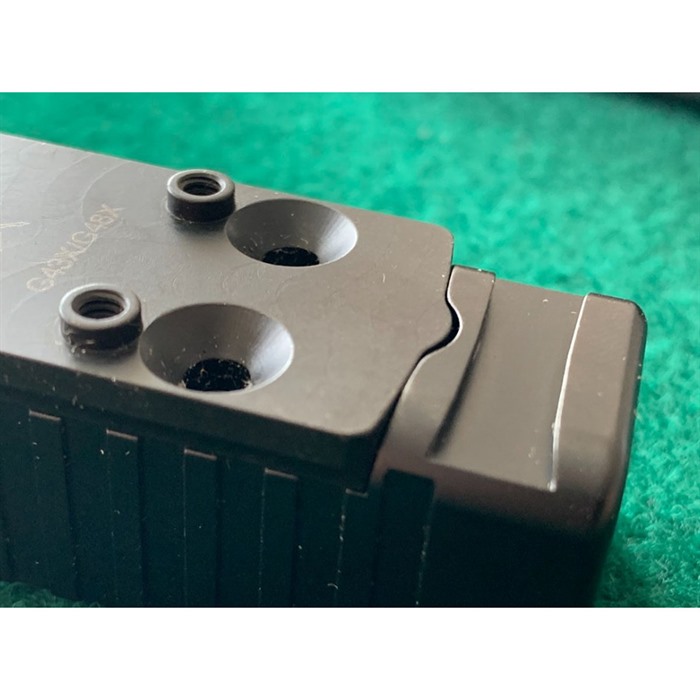

- RMRcc:llä on oma jalustajälki, ja etuosan kaksi pulttireikää on korvattu kahdella suuremmalla kierteisellä pylväällä (bossilla), joihin kiinnitetään näkölaite/levypultit.
- Kiinnityspultit ovat merkittävästi vahvistettuja, mutta OPF-G, RMRcc -suunnittelu pitää näkölaite paikallaan levyllä, joten suuremmat ja vahvemmat pultit eivät ole yhtä tärkeitä. Kuitenkin, toivomme aina pultteja, jotka eivät todennäköisesti kiristy.
- OPF-G43x/48, RMRcc ei ainoastaan nosta kiinnityspintaa RMRcc:lle, vaan myös huomioi RMRcc:n pituuden, jolloin näkölaite ulottuu liukujen yli.

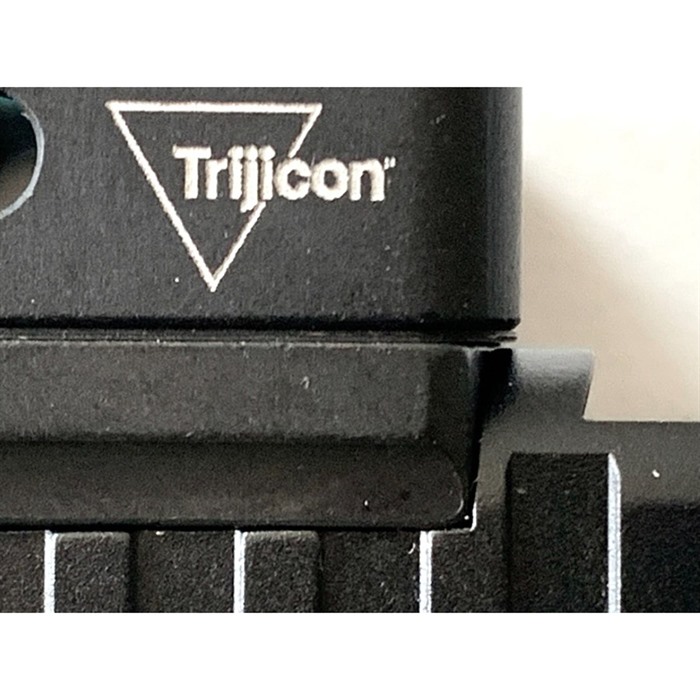

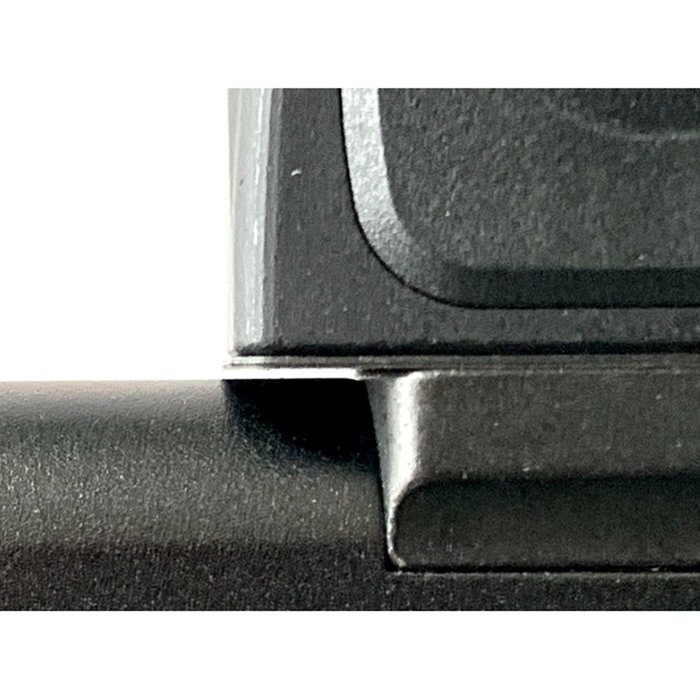

- Asennettuna RMRcc:n pohja (Trijiconin tarjoaman tiivistelevyn kanssa) on lähes tasainen liukujen yläpinnan kanssa, mikä tekee näkölaiteen mahdollisimman matalaksi.
- RMRcc on sijoitettu levyn keskelle niin paljon kuin mahdollista, jotta etuosan tiivistelevy ei jää liikaa tuettomaksi.

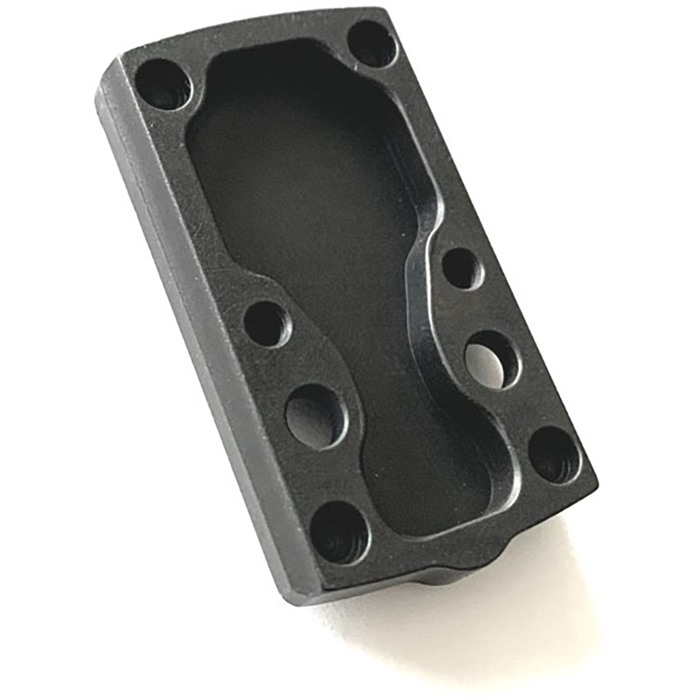

- RMRcc:llä on kumitiiviste akun osastonsa ympärillä, joka pitää veden ja kosteuden loitolla, ja työntää tiivistelevyä alaspäin.
- OPF-G43x/48, RMRcc:n suunnittelu poistaa raon/avauksen näkölaiteen ja tiivistelevyn välillä, emuloiden levyä, joka on yhtä pitkä kuin itse näkölaite.
Tekniset tiedot
- Momenttiarvo: Levyn ja liukujen välinen: 12-15 in·lbs.
- Näkölaite ja levy: 18 in·lbs.
- Paino: 0.75 oz
- Materiaali: 1018 teräs, musta nitridoitu
