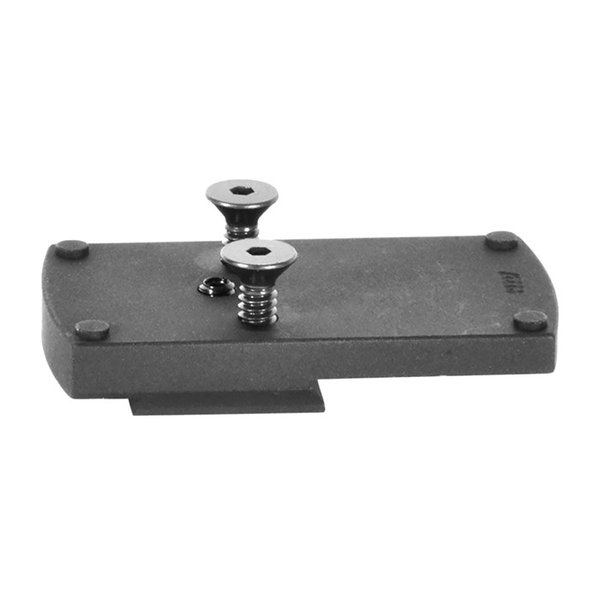

EGW red dot sights are meant to be installed from the left to the right (with the muzzle facing forward). The dovetail has a progressive taper to allow for easier install. Simply remove the rear sight on your gun and replace it with EGW mount in order to mount your Vortex Viper/Venom, Burris FastFire, or Docter red-dot sight. You can take the mount off and replace your rear sight at any time. Mounting hardware included. Installation Instructions Remove the rear sight* Install the EGW Sight Mount in the dovetail Tighten set screw (if applicable) Place the red dot sight on the EGW Sight Mount (placing a small piece of paper between the red dot sight and the sight mount will make for easier removal and will keep Loctite off of the red dot sight.) Apply blue Loctite to the provided mounting screws Torque mounting screws to 15in/lbs 2 Button Head Cap Screws - Provided for Vortex Viper and Venom Sights 2 Flat Head Cap Screws - Provided for Burris FastFire and Docter Sights The screws that are included with this mount require a 5/64'' allen wrench for installation. Modification of your firearm may nullify the manufacturer's warranty. This product should be installed and checked by a qualified gunsmith. No liability is expressed or implied for damage or injury which may result from improper installation or use of this product.
EGW Sight Mount Vortex Viper/Venomille – Täydellinen asennus S&W M&P 22:lle
EGW:n punapistekiinnikkeet on suunniteltu asennettavaksi vasemmalta oikealle (muzzle eteenpäin). Dovetail-muotoilussa on progressiivinen kapeneminen, joka helpottaa asennusta.
Poista vain aseesi takasight ja vaihda se EGW-kiinnikkeeseen, jotta voit asentaa Vortex Viper/Venom, Burris FastFire tai Docter punapisteen. Voit poistaa kiinnikkeen ja vaihtaa takasightin milloin tahansa. Asennusmateriaalit sisältyvät.
Asennusohjeet
- Poista takasight*
- Asenna EGW Sight Mount dovetailiin
- Kiretä asetussiru (jos sovellettavissa)
- Aseta punapiste EGW Sight Mountiin (pienellä paperipalalla punapisteen ja kiinnikkeen väliin helpottaa poistamista ja pitää Loctite:n poissa punapisteestä)
- Levitä sinistä Loctite:a mukana tuleville asennusruuveille
- Momentoi asennusruuvit 15in/lbs
Ruuvit:
- 2 Button Head Cap Screws - Tarjotaan Vortex Viper ja Venom Sights:lle
- 2 Flat Head Cap Screws - Tarjotaan Burris FastFire ja Docter Sights:lle
Kiinnikkeen mukana tulevat ruuvit vaativat 5/64'' allen avaimen asennukseen. Aseen muokkaaminen voi mitätöidä valmistajan takuun. Tämä tuote tulisi asentaa ja tarkistaa pätevän asehuoltajan toimesta. Ei vastuuta vahingoista tai vammoista, jotka voivat johtua väärästä asennuksesta tai tämän tuotteen käytöstä.
