EGW red dot sights are meant to be installed from the left to the right (with the muzzle facing forward). The dovetail has a progressive taper to allow for easier install. Simply remove the rear sight on your gun and replace it with EGW mount in order to mount your Vortex Viper/Venom, Burris FastFire, or Docter red-dot sight. You can take the mount off and replace your rear sight at any time. Mounting hardware included. Installation Instructions Remove the rear sight* Install the EGW Sight Mount in the dovetail Tighten set screw (if applicable) Place the red dot sight on the EGW Sight Mount (placing a small piece of paper between the red dot sight and the sight mount will make for easier removal and will keep Loctite off of the red dot sight.) Apply blue Loctite to the provided mounting screws Torque mounting screws to 15in/lbs 2 Button Head Cap Screws - Provided for Vortex Viper and Venom Sights 2 Flat Head Cap Screws - Provided for Burris FastFire and Docter Sights The screws that are included with this mount require a 5/64'' allen wrench for installation. Modification of your firearm may nullify the manufacturer's warranty. This product should be installed and checked by a qualified gunsmith. No liability is expressed or implied for damage or injury which may result from improper installation or use of this product. Does not fit: Springfield XD(M)® 5.25"" COMPETITION SERIES MODEL Any Optics Ready Springfield XD

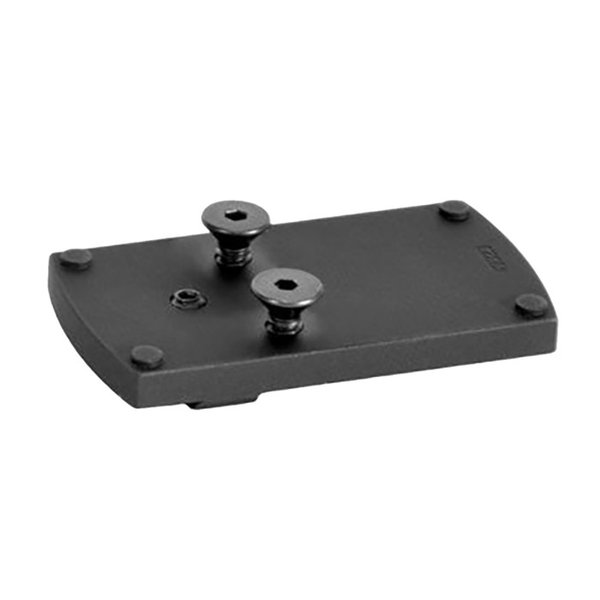

EGW Sight Mount Vortex Viper/Venom Springfield XD: Tehokas ja helppo asennus!
EGW:n punapisteet on suunniteltu asennettavaksi vasemmalta oikealle (kiväärin suu edessä). Dovetailissa on progressiivinen kapeneminen, joka helpottaa asennusta. Poista vain takasivun tähtäin aseestasi ja vaihda se EGW:n kiinnikkeeseen, jotta voit asentaa Vortex Viper/Venom, Burris FastFire tai Docter punapistetähtäimen.
Voit poistaa kiinnikkeen ja vaihtaa takasivun milloin tahansa. Asennuskomponentit sisältyvät.
Asennusohjeet
- Poista takasivun tähtäin*
- Asenna EGW Sight Mount dovetailiin
- Tiukkaa asennusruuvi (jos sovellettavissa)
- Aseta punapistetähtäin EGW Sight Mountiin (pienellä paperipalasella punapistetähtäimen ja kiinnikkeen väliin asettaminen helpottaa poistamista ja pitää Loctiten pois punapistetähtäimestä).
- Levitä sinistä Loctitea mukana oleviin asennusruuveihin
- Kiristä asennusruuvit 15 in/lbs
2 Kappaletta Kuusikulmaisia Pääruuveja - Toimitettu Vortex Viper ja Venom -tähtäimille
2 Kappaletta Litteitä Pääruuveja - Toimitettu Burris FastFire ja Docter -tähtäimille
Kiinnikkeen mukana tulevat ruuvit vaativat 5/64'' kuusiokoloavaimen asennusta varten.
Huomio: Aseesi muokkaaminen voi mitätöidä valmistajan takuun.
Tämä tuote tulisi asentaa ja tarkistaa pätevän asekorjaajan toimesta.
Ei vastuuta vahingoista tai loukkaantumisista, jotka voivat johtua väärästä asennuksesta tai tämän tuotteen käytöstä.
Ei sovi:
- Springfield XD(M)® 5.25"" COMPETITION SERIES MODEL
- Kaikki Optics Ready Springfield XD
