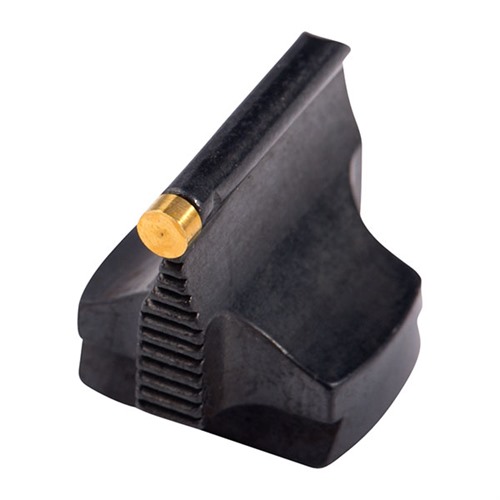

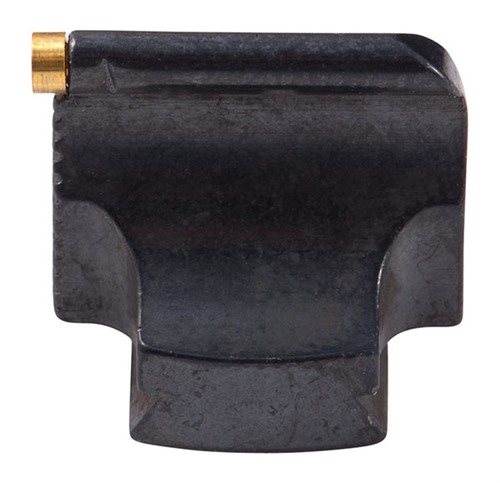

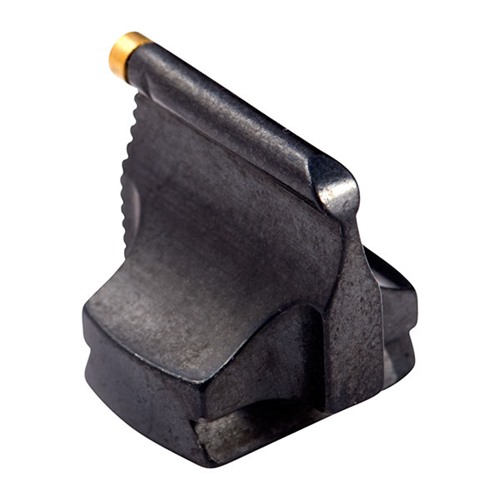

Precision-made sights for rifles, both with and without ramp bases. The blade is gracefully contoured, sloping toward the front. Made of steel and nicely blued to look good on any gun. The BARREL MOUNTED FRONT SIGHT has rounded base sides for guns with the front sight dovetail cut directly into the barrel. “W” sights have a 17/32" (13.5mm) wide base. Barrel front sights are available with three beads, Pope’s Island Gold, flat faced gold available in 3/32" (2.4mm) diameter. Ivory, flat faced white polymer in 3/32" (2.4mm) diameter.
SPECS: Steel, blue, polished finish. .620" (15mm) long. ORDERING: Select the sight height required using the Marbles and/or Williams charts and determine which Sight Style, Bead Type and Width is needed from the info above. Using the chart beside this copy, find the correct Marbles Sight and note the 9 digit Ordering No. For example: If you need a Contoured Ramp Front Sight, “MR” width, .290" (7.4mm) high, with a 1/16" (1.6mm) gold bead, follow the Height listing to the .290" figure, read across on the “MR” line to the 1/16" gold bead and note the number: 579-502-911. 1" = (2.54cm)
Tarkkuusvalmistettu etusite kivääreihin
RIFLE BARREL MOUNTED 3/32" 57-W FRONT SIGHT on täydellinen valinta kivääreille, joissa on tai ei ole rampin pohjaa. Teräksestä valmistettu ja kauniisti sinistetty etusite näyttää hyvältä kaikissa aseissa.
Ominaisuudet
- Materiaalit: Teräs, sininen, kiillotettu pinta
- Pituus: .620" (15mm)
- Perusleveys: 17/32" (13.5mm) "W" -sivuille
BARREL MOUNTED FRONT SIGHT:llä on pyöristetyt pohjapinnat aseille, joissa etusite on leikattu suoraan piippuun. Saatavilla on kolme erilaista helmeä: Pope's Island Gold, tasapintainen kulta halkaisijaltaan 3/32" (2.4mm) sekä valkoinen polymeeri halkaisijaltaan 3/32" (2.4mm).
Tilauksen tekeminen
Valitse tarvittava sight-korkeus Marbles- ja/tai Williams-taulukoista ja määritä, mikä Sight Style, Bead Type ja Width on tarpeen yllä olevasta tiedosta. Käytä tätä kopioita viereistä taulukkoa löytääksesi oikean Marbles Sightin ja huomioi 9-numeroinen tilausnumero. Esimerkiksi: Jos tarvitset kaarevan rampin etusiteen, "MR" leveys, .290" (7.4mm) korkeus, jossa on 1/16" (1.6mm) kultakoru, seuraa korkeuden luetteloa .290" -lukemaan, lue "MR" -rivin yli 1/16" kultakorulle ja huomioi numero: 579-502-911.
1" = (2.54cm)
