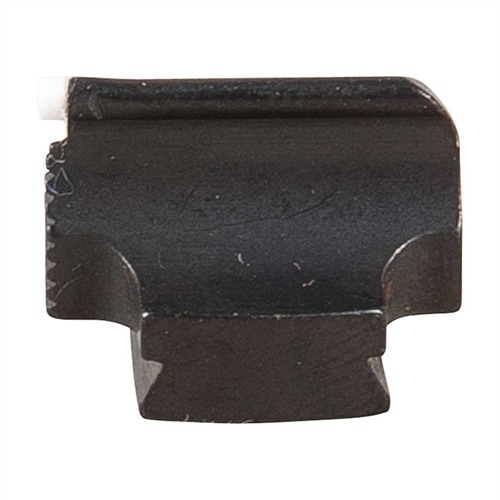

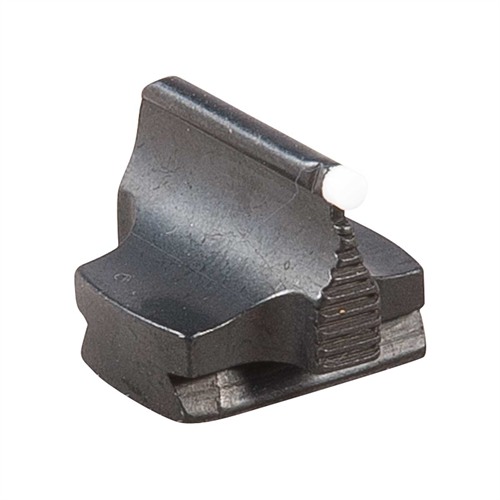

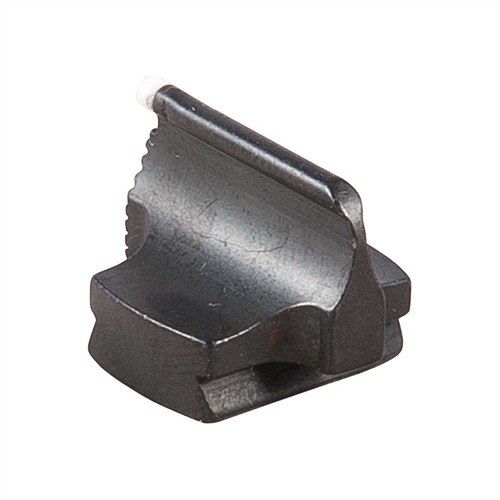

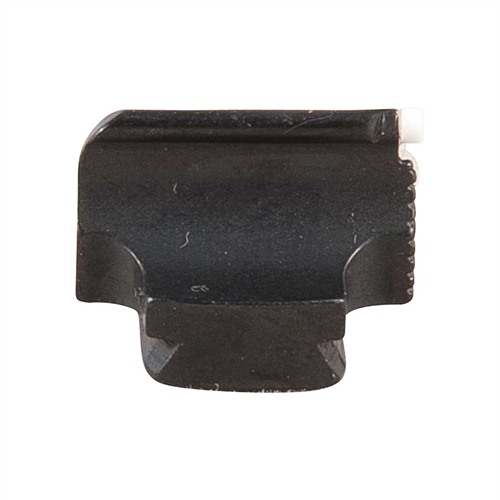

Precision-made sights for rifles, both with and without ramp bases. The blade is gracefully contoured, sloping toward the front. Made of steel and nicely blued to look good on any gun. The BARREL MOUNTED FRONT SIGHT has rounded base sides for guns with the front sight dovetail cut directly into the barrel. “W” sights have a 17/32" (13.5mm) wide base. Barrel front sights are available with three beads, Pope’s Island Gold, flat faced gold available in 1/16" (1.6mm) diameter. Ivory, flat faced white polymer in 1/16" (1.6mm) diameter.
SPECS: Steel, blue, polished finish. .620" (15mm) long. ORDERING: Select the sight height required using the Marbles and/or Williams charts and determine which Sight Style, Bead Type and Width is needed from the info above. Using the chart beside this copy, find the correct Marbles Sight and note the 9 digit Ordering No. For example: If you need a Contoured Ramp Front Sight, “MR” width, .290" (7.4mm) high, with a 1/16" (1.6mm) gold bead, follow the Height listing to the .290" figure, read across on the “MR” line to the 1/16" gold bead and note the number: 579-502-911. 1" = (2.54cm)
Tarkkuusvalmistetut tähtäimet kivääreihin
RIFLE BARREL MOUNTED 1/16" 45-W FRONT SIGHT on täydellinen valinta, jos etsit korkealaatuisia tähtäimiä kivääreihisi. Nämä tähtäimet ovat valmistettu teräksestä ja niissä on kauniisti sinistetty pinta, joka tekee niistä erinomaisen lisän mihin tahansa aseeseen.
Tuotteen kuvaus
BARREL MOUNTED FRONT SIGHT -mallissa on pyöristetyt sivut, jotka sopivat aseisiin, joissa etutähtäin on leikattu suoraan piippuun. “W” tähtäimissä on 17/32" (13.5mm) leveä pohja. Piippu-tähtäimiä on saatavilla kolmella eri helmiäisvaihtoehdolla:
- Pope’s Island Gold, tasapintainen kultakoru, halkaisija 1/16" (1.6mm)
- Elefantti, tasapintainen valkoinen polymeeri, halkaisija 1/16" (1.6mm)
Tekniset tiedot
Valmistusmateriaali: Teräs, sinistetty, kiillotettu pinta.
Pituus: .620" (15mm)
Tilauksen tekeminen
Valitse tarvittava tähtäinkorkeus Marbles- ja/tai Williams-taulukoista ja määritä, mikä Sight Style, Bead Type ja Width tarvitaan yllä olevista tiedoista. Käytä tämän tekstin vieressä olevaa taulukkoa löytääksesi oikea Marbles Sight ja merkitse 9-numeroinen tilausnumero. Esimerkiksi: Jos tarvitset muotoiltua rampin etutähtäintä, “MR”-leveys, .290" (7.4mm) korkeus, jossa on 1/16" (1.6mm) kultakoru, seuraa korkeusluetteloa .290" -lukemaan, lue “MR” -riviltä 1/16" kultakorua ja merkitse numero: 579-502-911.
1" = (2.54cm)
