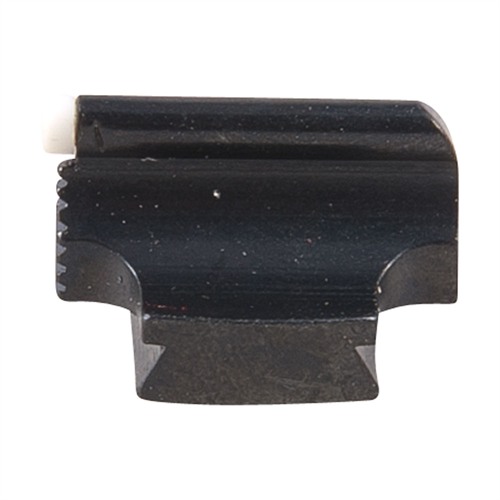

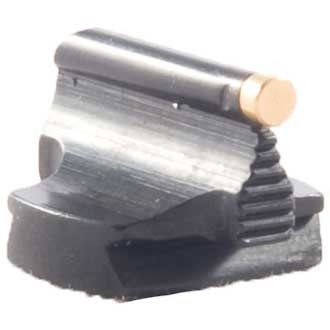

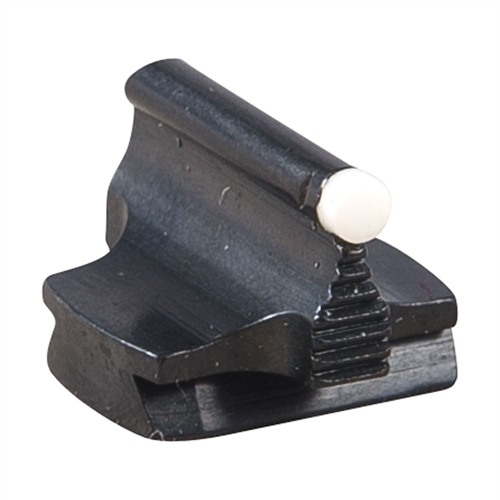

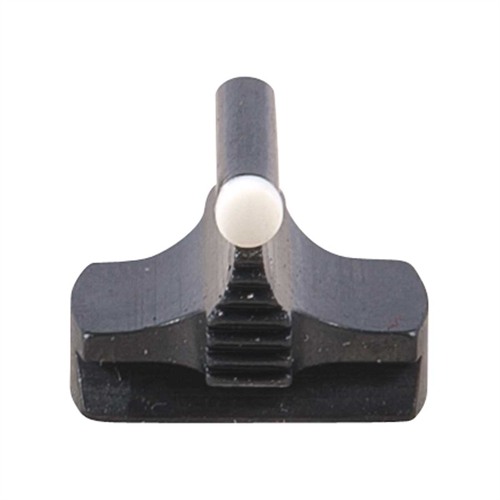

Precision-made sights for rifles, both with and without ramp bases. The blade is gracefully contoured, sloping toward the front. Made of steel and nicely blued to look good on any gun. The BARREL MOUNTED FRONT SIGHT has rounded base sides for guns with the front sight dovetail cut directly into the barrel. “W” sights have a 17/32" (13.5mm) wide base. Barrel front sights are available with three beads, Pope’s Island Gold, flat faced gold available in 3/32" (2.4mm) diameter. Ivory, flat faced white polymer in 3/32" (2.4mm) diameter.
SPECS: Steel, blue, polished finish. .620" (15mm) long. ORDERING: Select the sight height required using the Marbles and/or Williams charts and determine which Sight Style, Bead Type and Width is needed from the info above. Using the chart beside this copy, find the correct Marbles Sight and note the 9 digit Ordering No. For example: If you need a Contoured Ramp Front Sight, “MR” width, .290" (7.4mm) high, with a 1/16" (1.6mm) gold bead, follow the Height listing to the .290" figure, read across on the “MR” line to the 1/16" gold bead and note the number: 579-502-911. 1" = (2.54cm)
Tarkkuusvalmistetut tähtäimet kivääreihin
RIFLE BARREL MOUNTED 3/32" 41-W FRONT SIGHT on täydellinen valinta tarkkuusammuntaan. Tämä etutähtäin on suunniteltu erityisesti kivääreihin, joissa on tai ei ole rampperipohjaa.
Tuotteen kuvaus
Teräksestä valmistettu etutähtäin on kauniisti sinistetty, mikä tekee siitä erinomaisen lisän mihin tahansa aseeseen. BARREL MOUNTED FRONT SIGHT -mallissa on pyöristetyt pohjapinnat, jotka sopivat aseisiin, joissa etutähtäin on jyrsinnyt suoraan piippuun. “W” -tyypin tähtäimissä on 17/32" (13.5mm) leveä pohja.
Piippuetu tähtäimiä on saatavana kolmen erilaista helmeä:
- Pope’s Island Gold
- Litistetty kultainen helmi, halkaisija 3/32" (2.4mm)
- Luonnonvalkoinen polymeeri, litistetty, halkaisija 3/32" (2.4mm)
Tekniset tiedot
- Materiaalit: Teräs, sininen, kiillotettu pinta
- Pituus: .620" (15mm)
Tilaaminen
Valitse tarvittava tähtäinkorkeus Marbles- ja/tai Williams-taulukoista. Määritä, mikä Sight Style, Bead Type ja Width on tarpeen yllä olevista tiedoista. Käytä tämän tekstin vieressä olevaa taulukkoa löytääksesi oikean Marbles Sightin ja merkitse 9-numeroinen tilaustunnus. Esimerkiksi, jos tarvitset kaarevan rampin etutähtäimen, “MR” leveys, .290" (7.4mm) korkeus, 1/16" (1.6mm) kultaisella helmellä, seuraa korkeusluetteloa .290" -lukemaan, lue “MR” -rivillä 1/16" kultaiselle helmelle ja merkitse numero: 579-502-911. 1" = (2.54cm)
